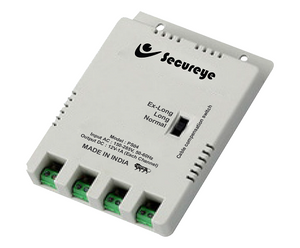

SECUREYE POWER SUPPLY 4CH FIBER 400-IB
Tax included.
SECUREYE POWER SUPPLY 4CH FIBER 400-IB
- Auto-restart limits power delivery to 3% during overload faults
- Output short-circuit protection (SCP)
- Output overload/over-current protection (OPP, OCP)
- Optional extended shutdown delay time
- Output overvoltage protection (OVP), auto-restart or latching
- Line brown-in/out protection (line UV)
- Line overvoltage (OV) shutdown extends line surge withstand
- Accurate thermal shutdown (OTP), hysteretic or latching
Technical Specifications
- Input Voltage: AC 110-285V
- Input Frequency: 50Hz
- Input Current: 200 mA @230V
- Output Voltage: DC 12V- DC 15V
- Output current: 4800 mA Max.
- Output power On: Green LED Indication
- Efficiency at Full Load: @230V AC >85%
- Line Regulation:<1%
- Load Regulation: <1%
- Dimension:35mm*145mm*95mm
- Input Cord: 2 Pin
- Weight: 220 Gms
