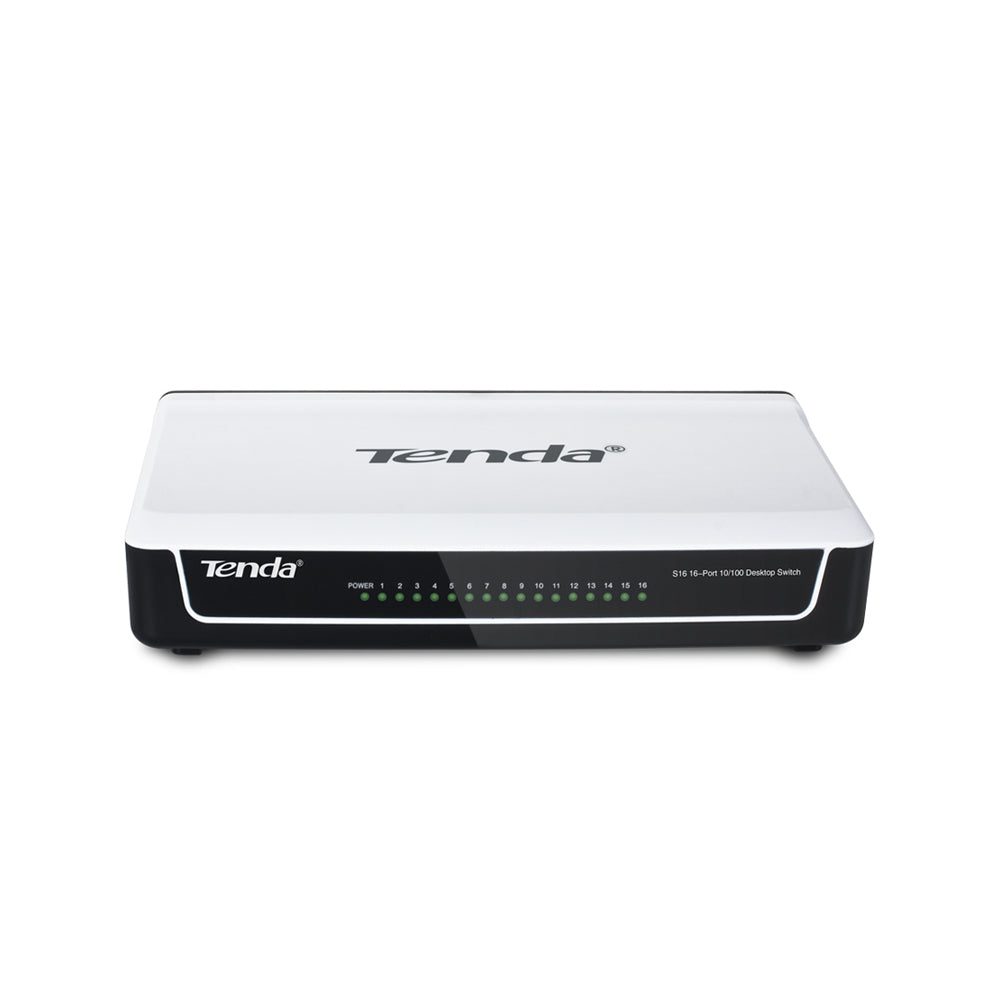

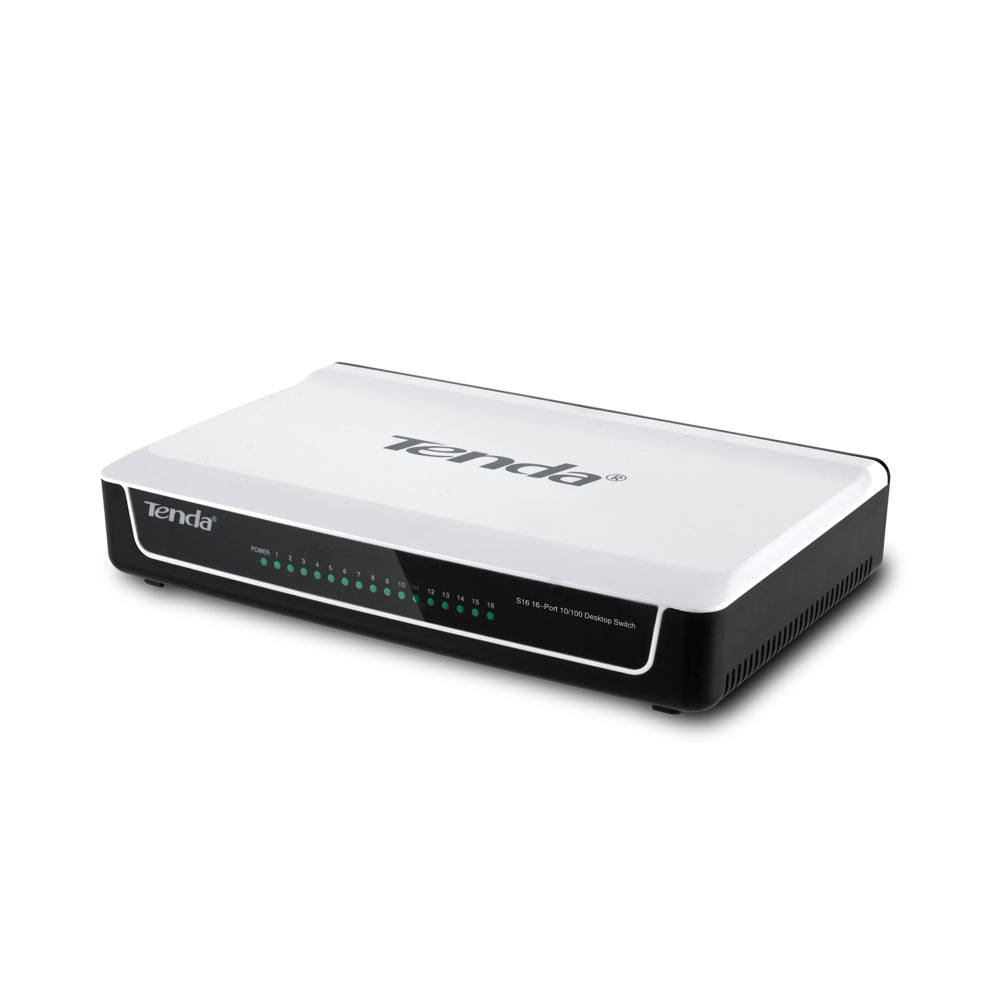

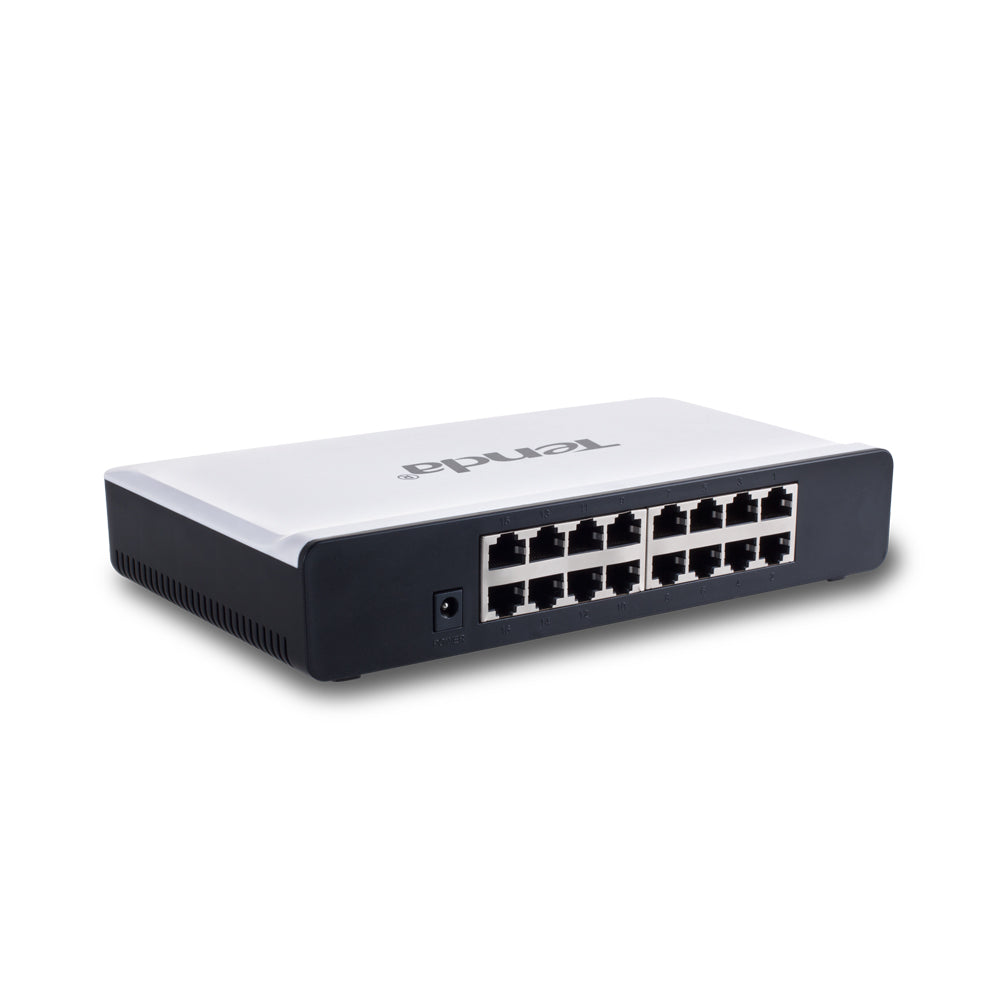

Tenda 16 Port Switch S16
Tax included.
Tenda 16 Port Switch S16
The Tenda S16 16-Port 10/100Mbps Switch provides simple and ideal solution to expand network for large home, building, leased or rented house and SMB. S16 connects with a router and connect with fifteen additional computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in sturdy plastic case with compact size, it is the best choice for desktop installation.
Specifications
Standard&Protocol
IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x
Port
16*10/100M auto-negotiation RJ45 ports (Auto MDI/MDIX)
Transmission Media
10Base-T: Cat. 3 UTP or better
100Base-TX: Cat.5 UTP
1000Base-T: Cat.5e UTP
100Base-TX: Cat.5 UTP
1000Base-T: Cat.5e UTP
Access Control
CDMA/CD
Forwarding Speed
10Mbps：14880pps
100Mbps：148800pps
100Mbps：148800pps
Switching Capacity
3.2Gbps
MAC Address Table
4K
LED indicator
16* 10/100 (LINK/ACT), 1* Power
Dimension
218mm x 135mm x 41.6mm（L x W x H）
Package Content
S16
Power Adapter DC 9V 1A
User Manual
Power Adapter DC 9V 1A
User Manual
Environment
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃
Operating Humidity: 10% ~ 90%RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing
Storage Temperature: -40℃ ~ 70℃
Operating Humidity: 10% ~ 90%RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing
Related Products
L9939D, TEL9901G TEH160SK
Certification
FCC, CE, RoHS, WEEE
