Tenda LAN CABLE CAT6 100M

  • Rs. 1,958.00
Tax included.

Will be in stock after

Tenda LAN CABLE CAT6 100M

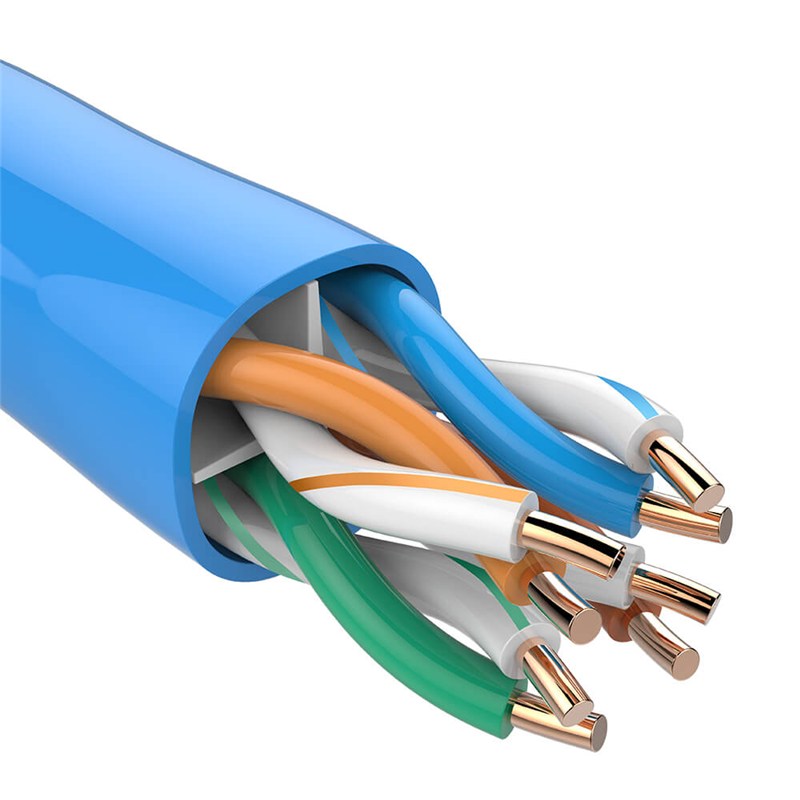

TEC-6000-305 is a kind of Cat6 UTP Ethernet cable designed for engineering. With the imported oxygen-free copper compliant with the 23AWG (diameter of 0.57mm), PVC and PE of high density, it features high conductivity, low degradation and strong anti-interference



Specifications

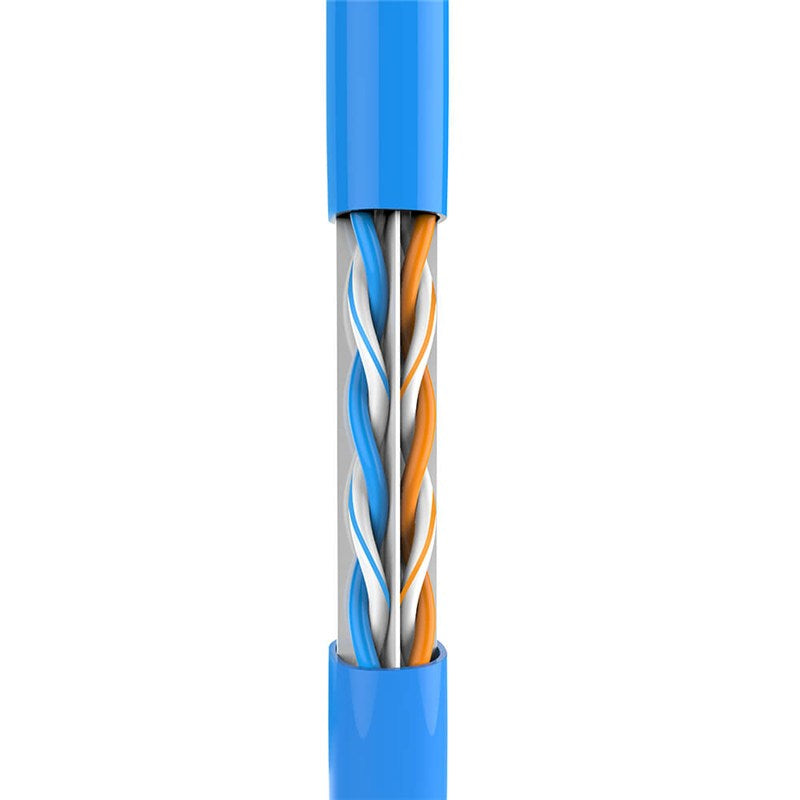

Mode  4 Cat6 UTP twisted pairs designed for engineering


Standard&Protocol  ISO/IEC 11801, TIA-568-C.2 and YD/T1019


ConductorOxygen -free copper with a diameter of 0.57 mm


Insulated copper  PE of high density is used for insulation with a insulation diameter of 1.02±0.03 mm.


Protective cover Color: Blue (Pantone285C)
Protective cover OD:Φ6.2 m


Depth: 0.65 mm±0.05 mm (PVC)


Copper color 1st pair: White (Blue)/Blue


2nd pair: White (Orange)/Orange
3rd pair: White (Green)/Green
4th pair: White (Brown)/Brown


Physical features Before aging: Tensile strength: (Mpa)≥13.5, Elongation: (%) ≥150
Aging conditions: (℃×hrs) 100℃×24h×10d


After aging: Tensile strength: (Mpa)≥12.5, Elongation (%): (%)≥125


Cold bending (-15±2℃×4 hrs), 8 times larger than the outer diameter of the Ethernet cable to prevent cracking


Electrical propertiesoltage  level for testing: 1 KV, without breakdown


Dielectric withstand  test: 1 KV/m, without breakdown


DC resistance: 20℃ (Ω/100 m) max9.38


DC Resistance Unbalance (%): max5.0


Dimension 415*415*220 mm


Environment Operating Environment:Temperature:-20℃~70℃,Operating humidity(10~90)%RH, non-condensing
Storage Environment:Normal temperature for 20 years
