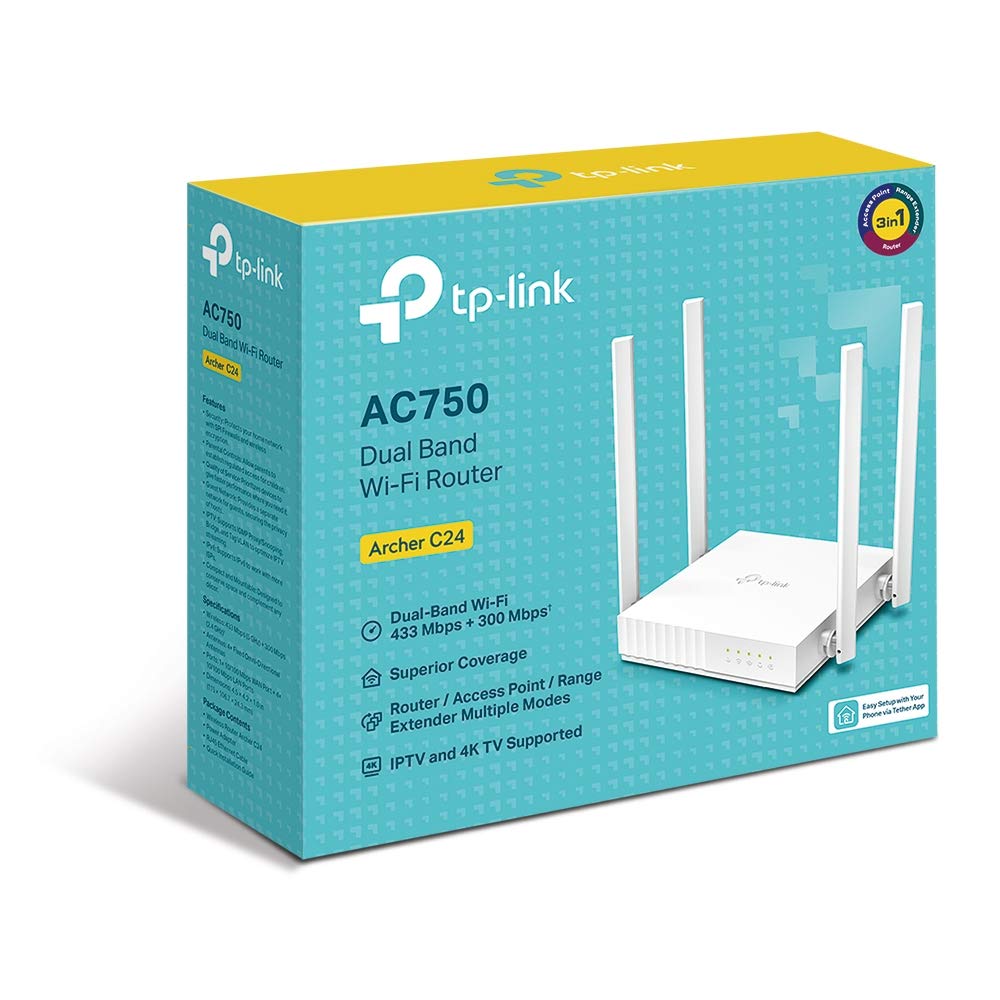

TP-Link Archer C24 Router
Tax included.
TP-Link Archer C24 Router
Features
- High-Speed Wi-Fi—AC750 dual-band is ideal for HD video streaming, high-speed downloading.
- Far-Reaching Coverage—4× antennas deliver far-reaching Wi-Fi and reliable connections.
- Multi-Mode 3 in 1—Supports Router, Access Point, and Range Extender to add flexibilities.
- Parental Controls—Manages when and how connected devices can access the internet.
- Guest Network—Provides separate access for guests while securing the host network.
- Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
- IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
- Compact and Mountable—Designed to conserve space and complement any décor.
Specifications
| WIRELESS | |
| Standards | Wi-Fi 5IEEE 802.11ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC7505 GHz: 433 Mbps (802.11ac)2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 2 Bedroom Houses4× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas |
| WiFi Capacity | MediumDual-Band Allocate devices to different bands for optimal performance |
| Working Modes | Router ModeAccess Point ModeRange Extender Mode |
| HARDWARE | |
| Processor | Single-Core CPU |
| Ethernet Ports | 1× 10/100 Mbps WAN Port4× 10/100 Mbps LAN Ports |
| Buttons | WPS/Reset Button |
| Power | 9 V ⎓ 0.6 A |
| SECURITY | |
| WiFi Encryption | WEPWPAWPA2WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network1× 2.4 GHz Guest Network |
| SOFTWARE | |
| Protocols | IPv4IPv6 |
| Parental Controls | URL FilteringTime Controls |
| WAN Types | Dynamic IPStatic IPPPPoEPPTPL2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Port ForwardingPort TriggeringDMZUPnP |
| IPTV | IGMP ProxyIGMP SnoopingBridgeTag VLAN |
| DHCP | Address ReservationDHCP Client ListServer |
| DDNS | NO-IPDynDNS |
| Management | Tether App |
| PHYSICAL | |
| Dimensions (W×D×H) | 4.5 × 4.2 × 1.0 in(115 × 106.7 × 24.3 mm) |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power | CE:<20dBm(2.4GHz)<23dBm(5GHz) |
| WiFi Reception Sensitivity | 5GHz:11a 54M: -76dBm;11ac VHT20 MCS8: -71dBm;11ac VHT40 MCS9: -66dBm;11ac VHT80 MCS9: -62dBm2.4GHz:11g 54M: -76dBm;11n HT20 MCS7: -73dBm;11n HT40 MCS7: -71dBm |
| Warranty | 3 Years |
