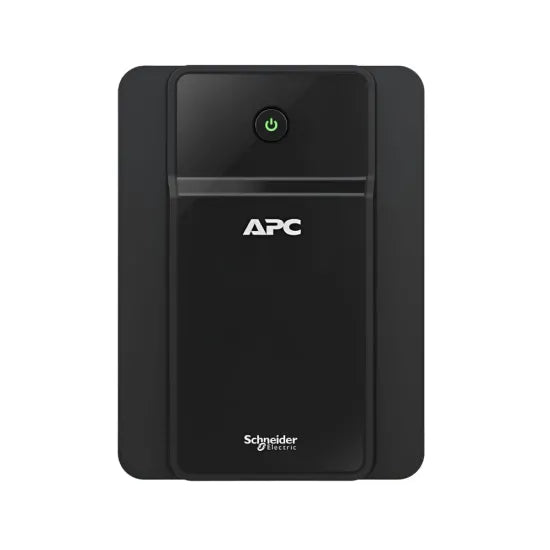

APC UPS BX1100I-IN UPS

Compact Design Line Interactive UPS with Load Capacity of 660Watts / 1100VA
Five 6A, 2/3 Pin Indian Power Socket (4 Battery Backed-up & Surge Protected plus 1 Surge Only Protected Outlet)
Automatic Voltage Regulator (AVR) with Wide Input Voltage Range 145-290V
2x7.2Ah Battery provides 30 - 90 min. Back-Up time as per the load
Generator Compatible
Compatible with low power loads e.g. Wi-Fi router, DSL modem
Cold start capability allows the load to power on just on battery

Specifications

Input Features

Input Voltage	230 V
Input Frequency	45 TO 55
Other Input Features	Wide input voltage window : 145 V to 290 V, Cold start capability allows the load to power on just on battery, Automatic Voltage Regulation (AVR) corrects incoming voltage

Output Features

Output Voltage	230 V
Output Frequency	50+/-3Hz
Output Power Wattage	660 W
Efficiency	92 %
Output Waveform	Stepped approximation to a sinewave
Transfer Time	4 ms
Number of Outlet Plugs	4
Surge Protection	YES , All five
Other Output Features	Beeper Delay : Stays quiet during changeover from mains to generator

Convenience Features

Digital Display	No
Emergency Power Off	No
Serial Port	No
Low Battery Indicator	Yes
Other Convenience Features	Compatible with low power loads e.g. Wi-Fi router, DSL modem,Stays quiet during a changeover from mains to generator,Up to 75* min. Back-Up time *as per the load

Dimensions

Battery Features

Recharge Time	4-6hours
Number of Batteries	2
Battery Capacity	12v/7ah
Replacement Battery	Yes
Other Battery Features	Five 2/3 Pin 6A Indian Power Socket (Four Battery backed-up & Surge Protected plus 1 Surge Only Protection)

Additional Features

Compact Design Line Interactive UPS with Load Capacity of 660Watts / 1100VA, Five 6A, 2/3 Pin Indian Power Socket (4 Battery Backed-up & Surge Protected plus 1 Surge Only Protected Outlet), Automatic Voltage Regulator (AVR) with Wide Input Voltage Range 145-290V and Generator Compatible
