ERD CCTV Power Supply 12v/5a Slim For 4ch PS30T
Tax included.
ERD CCTV Power Supply 12v/5a Slim For 4ch PS30T

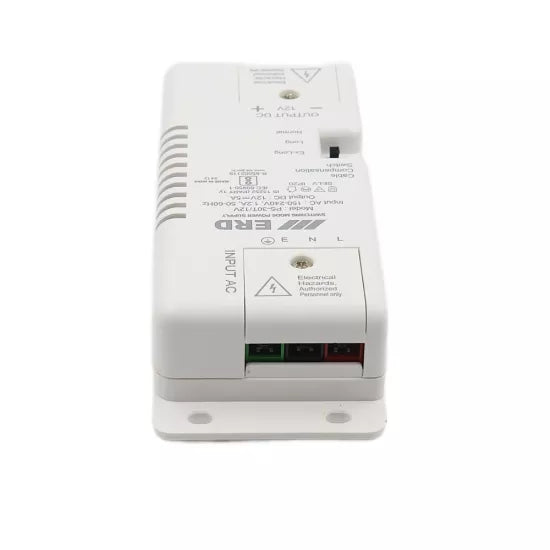

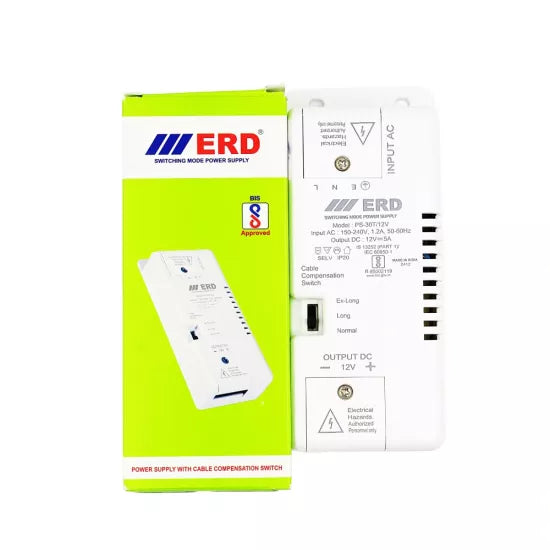

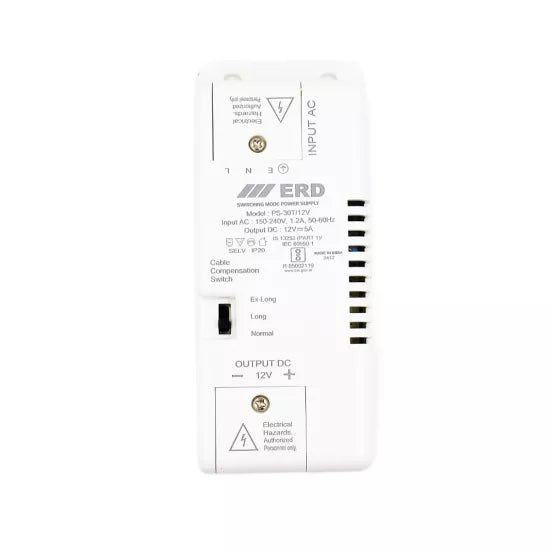

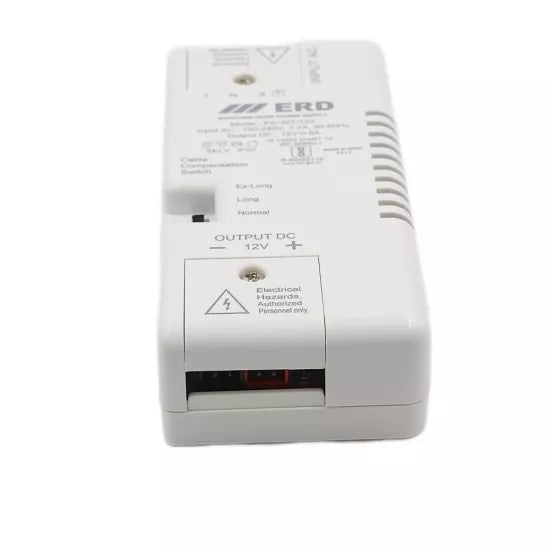

ERD CCTV Power Supply 12v/5a Slim For 4ch PS30T is a slim and efficient power supply unit designed to deliver stable 12V/5A output, making it ideal for powering up to 4 CCTV cameras in compact surveillance installations. Its space-saving slim design ensures easy installation in tight areas while providing reliable power distribution for consistent system performance
| Specification | Details |
|---|---|
| Input Voltage | 150V to 240V AC, 50/60Hz |
| Output Voltage | 12V DC |
| Output Current | 5 Amp (Max.) |
| Output Wattage | 60 Watt (Max.) |
⚙️ Features
| Feature | Details |
|---|---|
| BIS Approved | Yes |
| Highly Integrated SMPS Switcher I.C Design | Yes |
| Surge Protection, Over Temperature Protection | Yes |
| Over Current, Over Voltage & Over Load Protection | Yes |
| High-efficiency, low energy Consumption | Yes |
| Cable Compensation Switch For Voltage Boosting | Yes |
| Low Ripple Voltage (mV P-P) | <5% |
| Works under low voltages and protects high voltage where linear fails | Yes |
| Attractive White color with FR grade PC Cabinet | Yes |
| Covered Input AC & Output DC terminals for safety purpose | Yes |
| Desktop type with wall hanging hook | Yes |
| Screw type block terminals for easy installation | Yes |
📌 Applications
| Application | Details |
|---|---|
| CCTV Camera | Yes |
| Other Electronic Equipments | Yes |
