Mantra Door Access Control Reader RFR-104-26/34WEI

  • Rs. 1,192.00
Tax included.

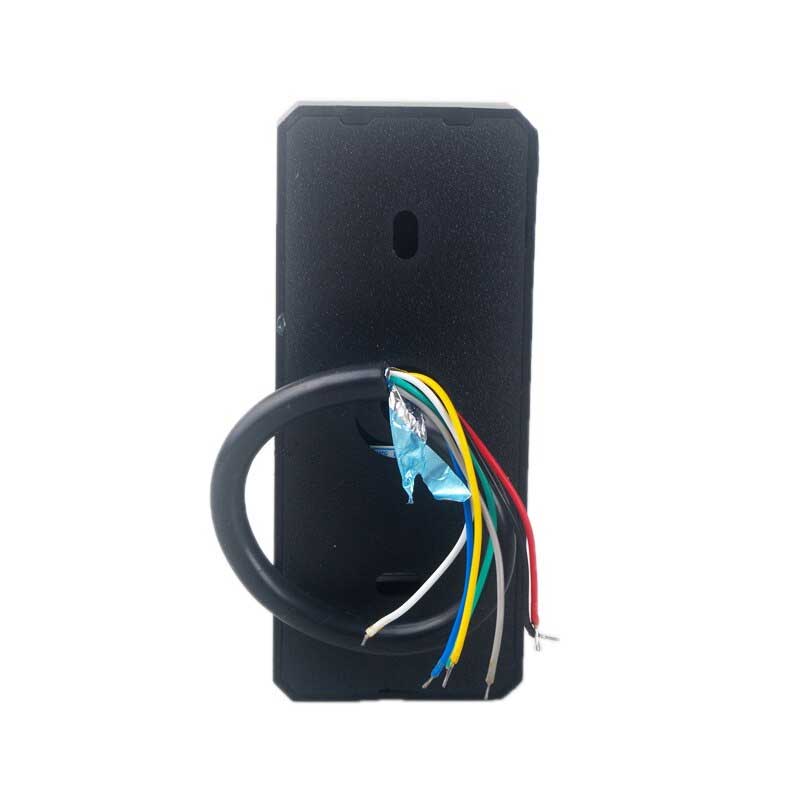

Mantra Door Access Control Reader RFR-104-26/34WEI

Door Access Control Reader Wiegand 125KHz ID Card Reader EM 4100 Black 101A with IP68 rating

Features

Have the high ingenious receiving,low current and high stability.

Widely apply in access control, time attendance, electronic toll system, anit-theft and RF Identification various area.

It is useful for safety door systerm, easy to connect and use.

With full pc glue in the back side,IP65 Waterproof

Frequency: 125KHZ ID

Specifications

Frequency 125 KHz
Read Cards EM4100 and compatible cards
Supporting Cards Operation Read the Serial Number of ID Cards
Interface Wiegand 26/34
Read Time < 120 ms
Read Distance 0 - 15 cm
Working Voltage/Current DC 12V/Max 60mA
Power Consumption < 1w
System Protection Power Protection in Reverse Meet. Data Line Compression Resistance Protection. Max. ±15V
Data Transferring Distance 60 - 100 meters
Operating Temperature 0 - 60
Storage Temperature -20 - 80
Material Plastic (RoHS)
Dimensions 102*43*16(mm)
Operating Humidity IP65
