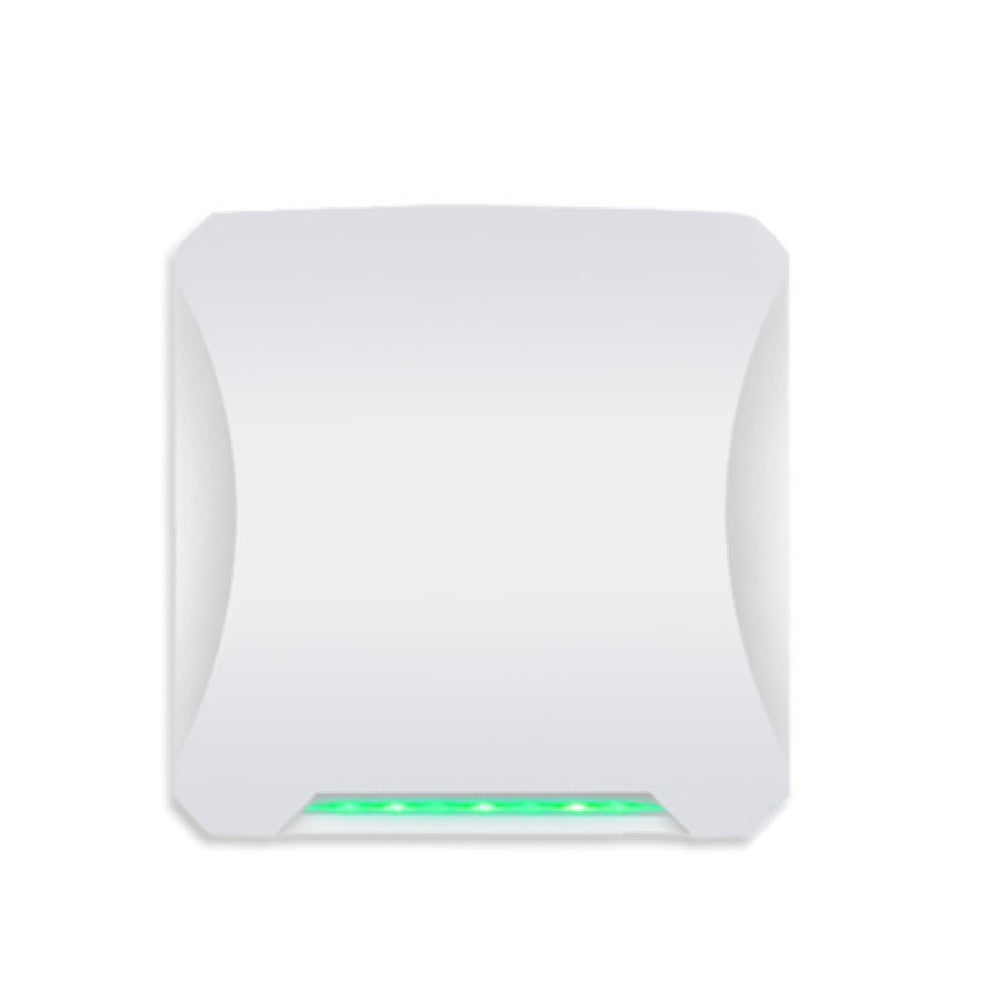

MORX CR06 UHF Mid-Range RFID Reader - Up to 6m / TCP/IP + RS485 + Wiegand / Relay Output | Brand New
MORX CR06 UHF Mid-Range RFID Reader - Up to 6m / TCP/IP + RS485 + Wiegand / Relay Output
The MORX CR06 is a UHF mid-range RFID reader (865-867 MHz) reading EPC Gen2 tags at up to 6 metres, with TCP/IP, RS232, RS485, Wiegand and relay output - ideal for vehicle and boom-barrier access control.
Key Features
- UHF 865-867 MHz, ISO 18000-6C (EPC Gen2)
- Reading distance up to 6 metres
- Built-in 9dBi linear polarized antenna
- TCP/IP, RS232, RS485, Wiegand 26/34 and relay output
- Software adjustable RF power 0-30 dBm
Specifications
| Model | CR06 |
| Type | UHF mid-range RFID reader |
| Frequency | 865-867 MHz |
| Read Distance | Up to 6 m |
| Tag Support | ISO 18000-6C (EPC Gen2) |
| RF Power | 0-30 dBm, software adjustable |
| Antenna | Built-in 9dBi linear polarized |

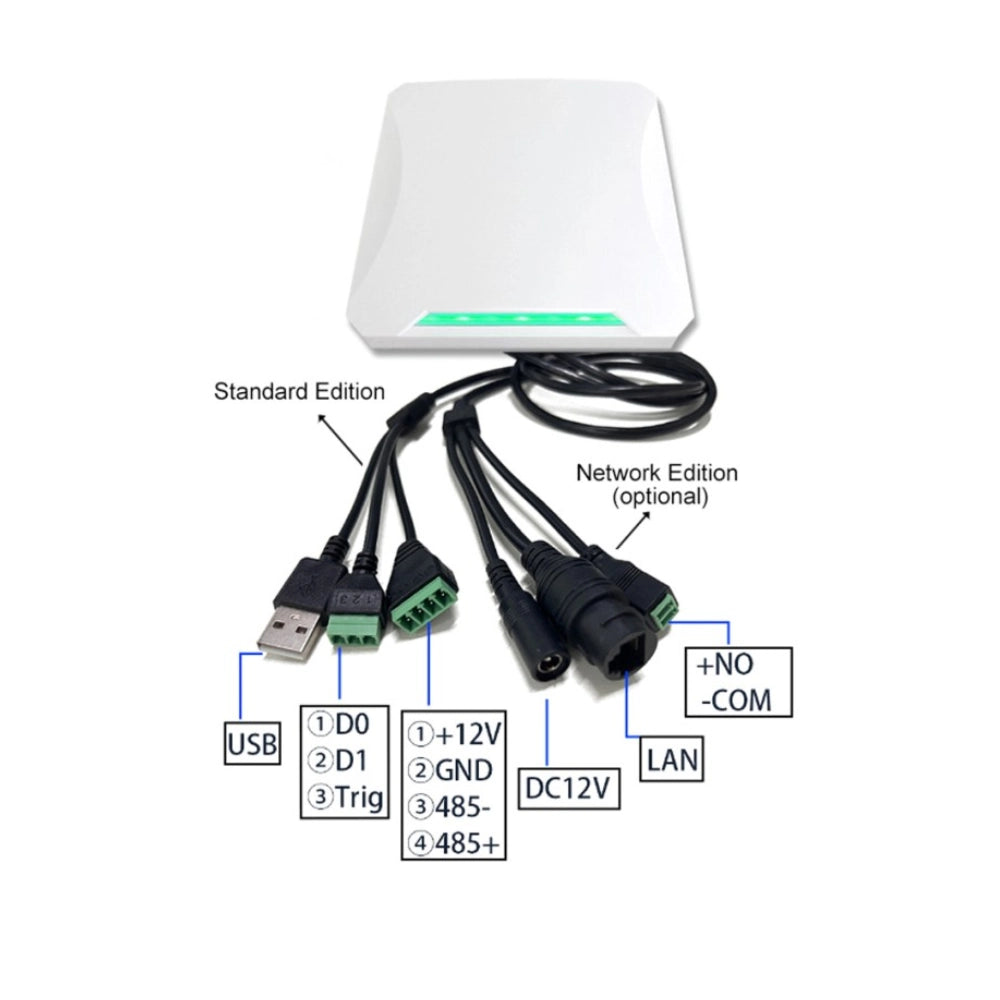

| Interfaces | TCP/IP (RJ45), RS232, RS485, Wiegand 26/34, Relay |
| Power | 12V DC / 2A |
| Operating Temperature | -20 to +70 C |
Ideal For
Society and factory gates, parking boom barriers, vehicle tracking and asset tracking.
