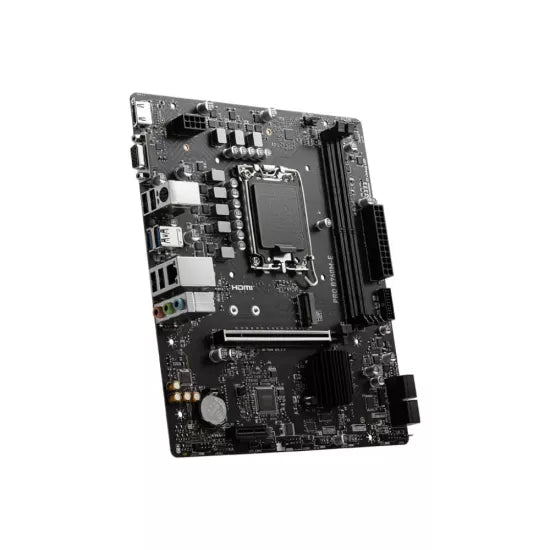

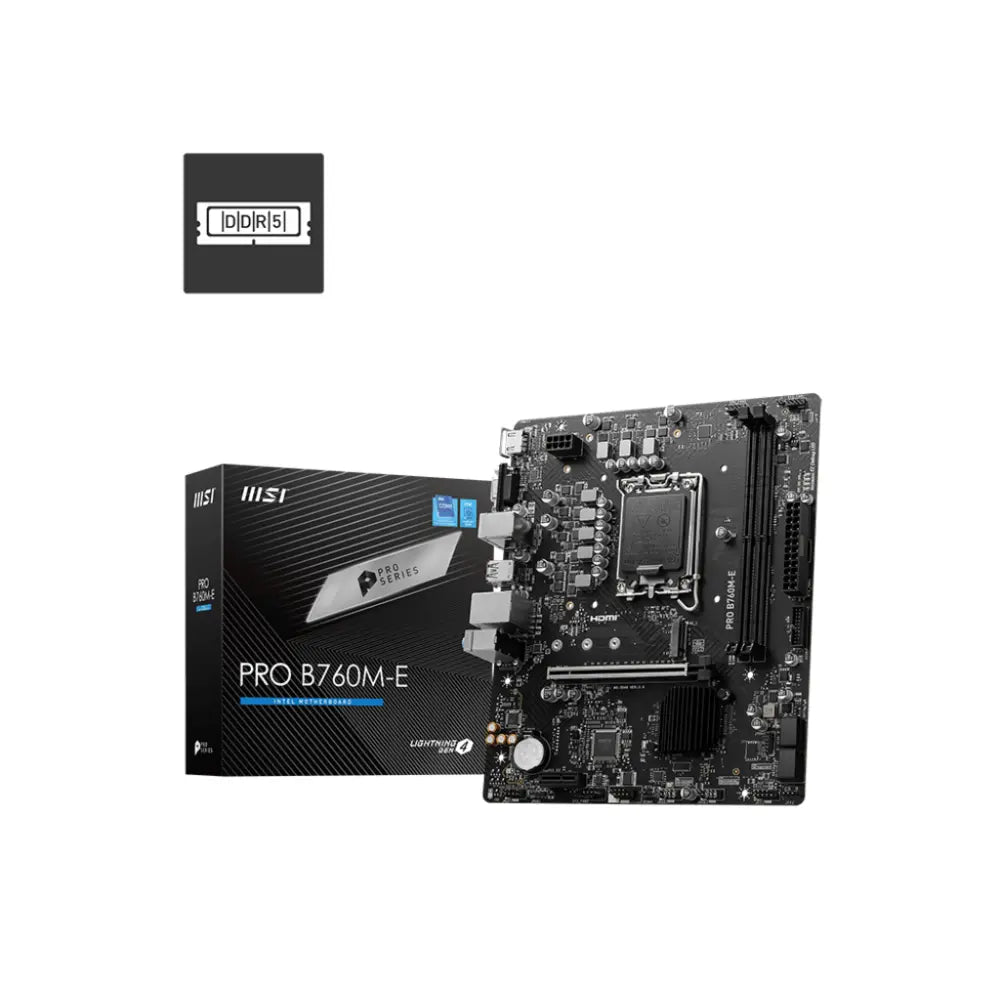

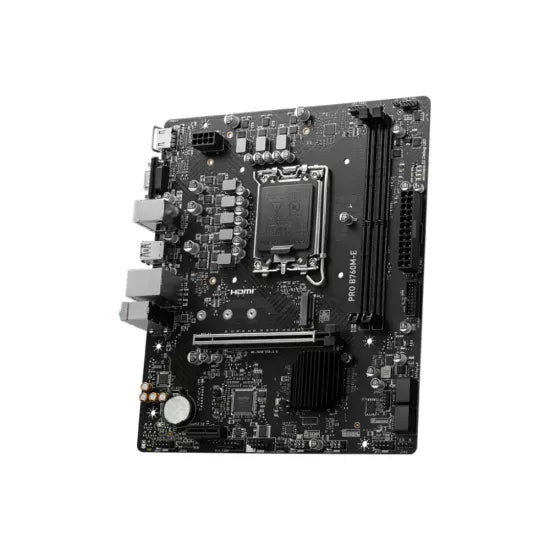

MSI PRO B760M-E DDR5 Motherboard For Intel 12th | 13th | 14th Gen
A solid, no-nonsense base for your next Intel build. The MSI PRO B760M-E DDR5 supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700, with fast DDR5 memory and PCIe 4.0 storage — ideal for office PCs, home desktops and budget creator rigs.
Why you'll love it
- Latest Intel support: Core 14th/13th/12th Gen plus Pentium Gold and Celeron on LGA 1700.
- DDR5 ready: 2 DIMM slots, up to 128GB, speeds up to 6400+ MHz (OC) with Intel XMP 3.0.
- Fast storage: 1x M.2 (PCIe 4.0 x4 / SATA) plus 4x SATA 6G with RAID 0/1/5/10.
- Display out without a GPU: HDMI 1.4 (4K 30Hz) and VGA when using a CPU with integrated graphics.
- Room to grow: PCIe 4.0 x16 slot for a graphics card, plus a PCIe 3.0 x1 slot.
Key Specifications
| Chipset / socket | Intel B760, LGA 1700 |
| Memory | 2x DDR5, max 128GB, up to 6400+ (OC), 5600 JEDEC |
| Expansion | 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 |
| Storage | 1x M.2 (PCIe 4.0 x4 / SATA, 2242/2260/2280), 4x SATA 6G* |
| Video out | 1x HDMI 1.4 (4K 30Hz), 1x VGA |
| USB | 8x USB 2.0 (4 rear, 4 front), 4x USB 5Gbps Type-A (2 rear, 2 front) |
| LAN / audio | Realtek RTL8111H Gigabit; Realtek ALC897 7.1-channel HD audio |
| Headers | TPM 2.0, RGB LED, COM, CPU fan + 2 system fan |
*SATA5 is unavailable when an M.2 SATA SSD is installed in M2_1.
Official Warranty & GST Invoice
- 📦 Condition: 100% Brand New, sealed box.
- 🛡️ Warranty: 3-year official MSI warranty in India.
- 🧾 GST Invoice: Businesses can claim up to 18% GST input tax credit.
Visit BROOT in Jaipur
Planning a custom PC? Get the full build — CPU, RAM, SSD and assembly — at BROOT Compusoft LLP, Kings Road, Jaipur. Call or WhatsApp 8094019550.
