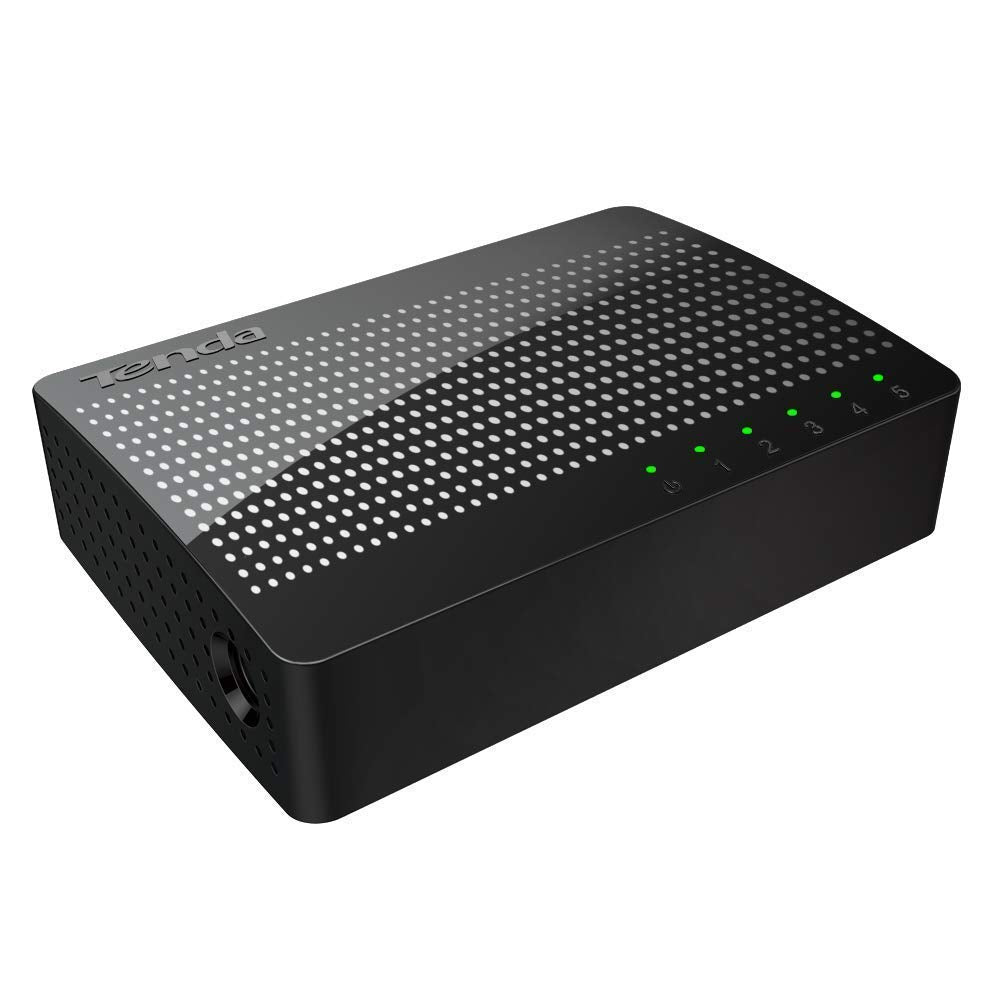

Tenda 5-Port Gigabit Switch SG105
Tax included.
Tenda 5-Port Gigabit Switch SG105
Tenda SOHO Gigabit Ethernet switches offer plug-and-play simplicity, reliability for your small office or home/office network.Compared with a 100M switch, they enhance transmission speed up to 10 times,and eliminate the bottleneck of cascading bandwidth.
Specifications
Standard&Protocol
IEEE 802.3/u/x/ab
Interface

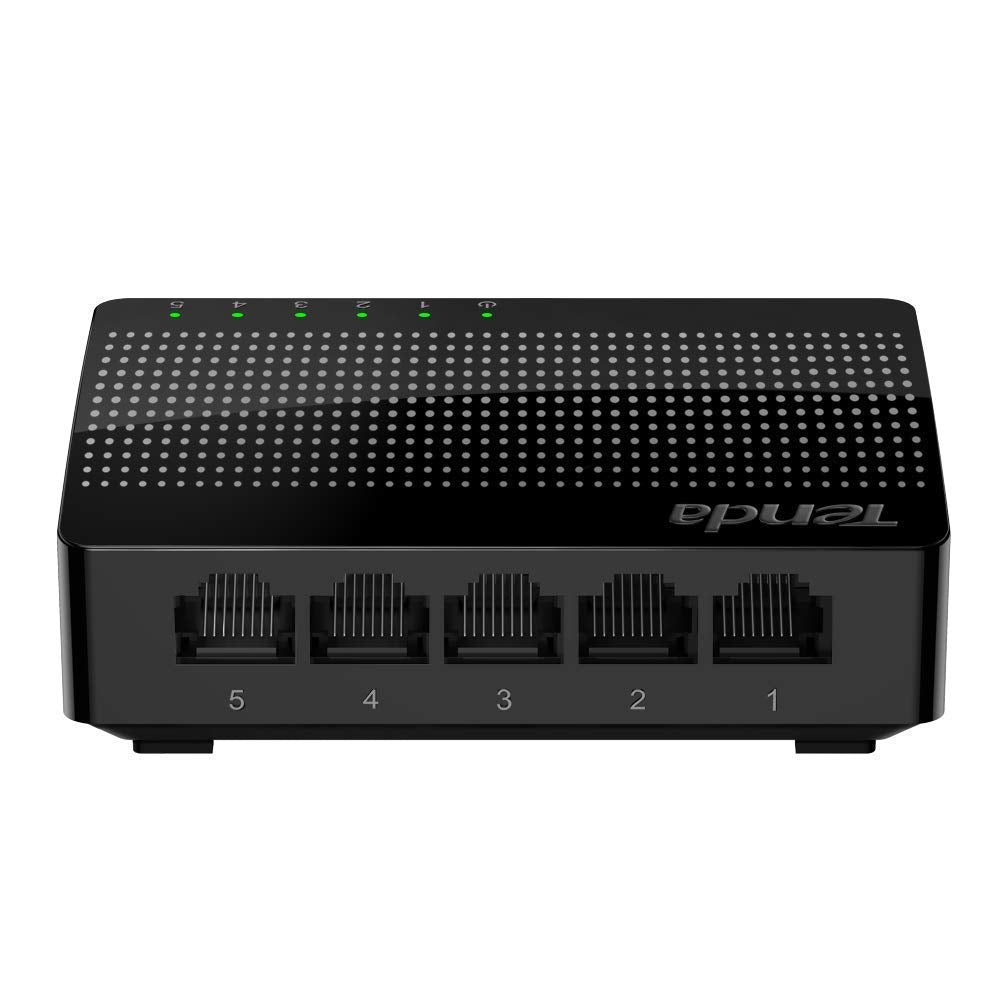

5* 10/100/1000Mbps auto-negotiation RJ45 ports, auto MDI/MDIX
Transmission Media
10BASE-T: Cat.3 or Above
100BASE-TX/1000BASE-T: Cat.5, Cat.5e or Above
100BASE-TX/1000BASE-T: Cat.5, Cat.5e or Above
Forwarding Rate
10Mbps: 14880pps
100Mbps: 148800pps
1000Mbps: 1488000pps
100Mbps: 148800pps
1000Mbps: 1488000pps

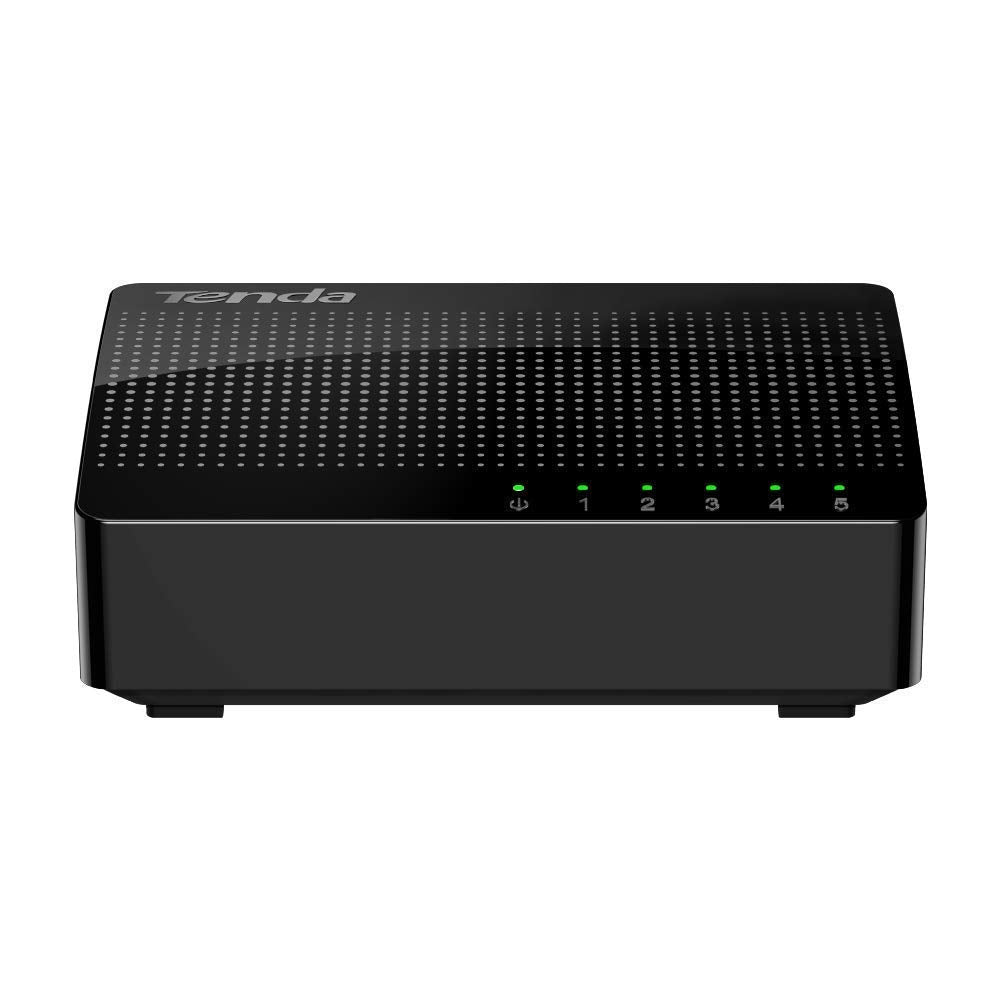

LED indicator
5*10/100/1000Mbps Link/Act LEDs
1*power LED
1*power LED
Features
Store-and-forward mechanism
Auto-learning and auto-aging MAC address
Switching capacity of 10Gbps
Auto-learning and auto-aging MAC address
Switching capacity of 10Gbps
Power Input
100-240V~50/60Hz
Power Output
5V/0.6A
Consumption
Standby: 0.5W Maximum：2.5W（220V/50Hz）
Dimension
96*66*23mm
Operation Temperature
0℃~45℃
Operating Humidity
10%~90% non-condensing
Storage Temperature
-40℃~70℃
Storage Humidity
5%~90% non-condensing
