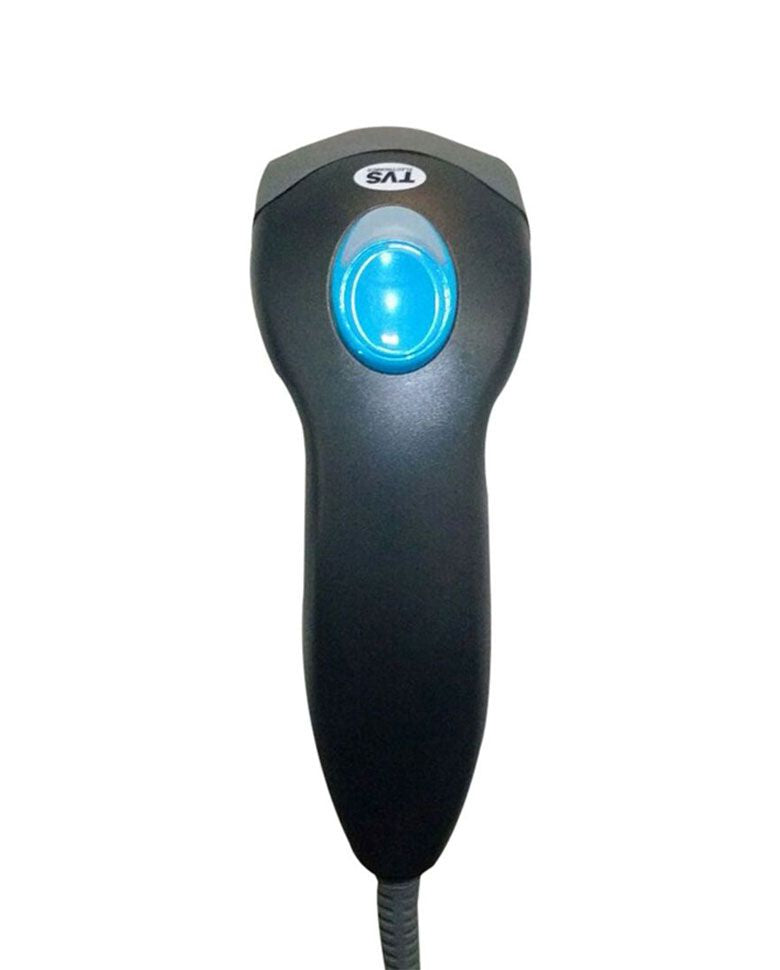

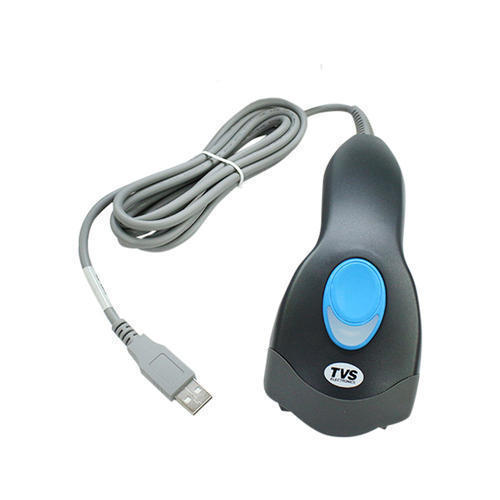

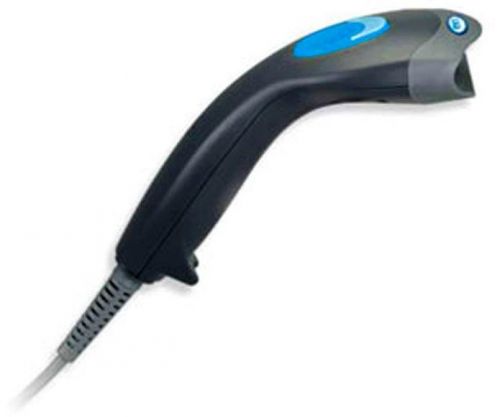

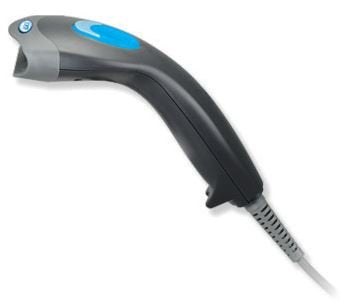

Tvs Barcode Scanner BS-C101 Star

  • Rs. 2,508.00
Tax included.


Tvs Barcode Scanner BS-C101 Star

Brand: TVS
Product: New
Generic Name: Barcode Scanner
Model no.: BS-C101
Warranty: 1 Year From TVS
  • Fastest in this segment with 330 scans per second
  • Increased resolution of 2500 pixels
  • Greater decoding accuracy
  • Auto-scan mode enables hands-free operation
  • Higher depth-of-field up to 300 mm enables decoding from longer distances

SPECIFICATIONS

Light Source

650 nm visible laser diode VLD

MPU

32 bit

Depth of Field

35 200 mm UPC/EAN 100%, PCS=90%

Scan Rate

330 scans per second

Scan Angle

52°

Pitch / Roll / Skew angle

65° / 30° / 65°

Minimum Bar Width

4 mil @ PCS=90% Code 39

Print Contrast

30% @ UPC/EAN 100%

Indicators LED

Three colour LED green, red & blue

Beeper Option

Programmable tone & beep time

System Interfaces

Keyboard, RS232C, HID USB, wand

Physical Dimensions

L106.7 x D58.0 x H155.0 mm device only

Weight

148 g stand excluded

Cable

Standard 2.0M straight

Input  Voltage

5 VDC ±10%

Power Consumption

1.0 watts

Operating Current

200 mA

Laser Class

CDRH Class Iia: IEC 608251: Class 1

EMC

CE & FCC DOC compliance, VCCI, BSMI

Operating Temperature

0°C 40°C 32°F 104°F

Storage Temperature

20°C 60°C 4°F 140°F

Humidity

5% 95% RH noncondensing

Light Levels

4,500 Lux fluorescence

Drop Durability

Designed to withstand 1.0 M drops

Barcode

Most popular 1D barcodes, incl. GS1 DataBar & PDF 417
