ERD Power Adapter 12v/2a DC Pin PS027
Tax included.

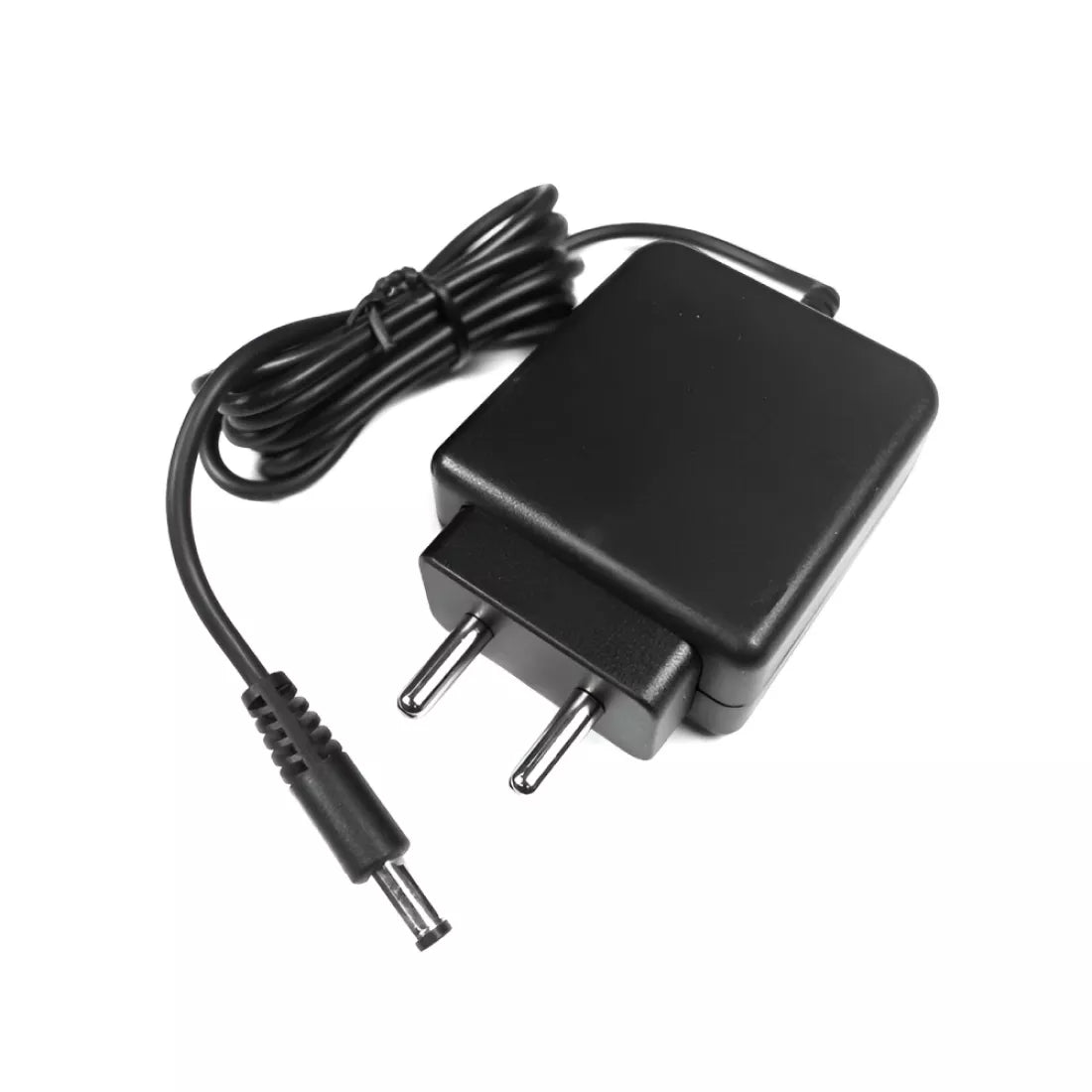

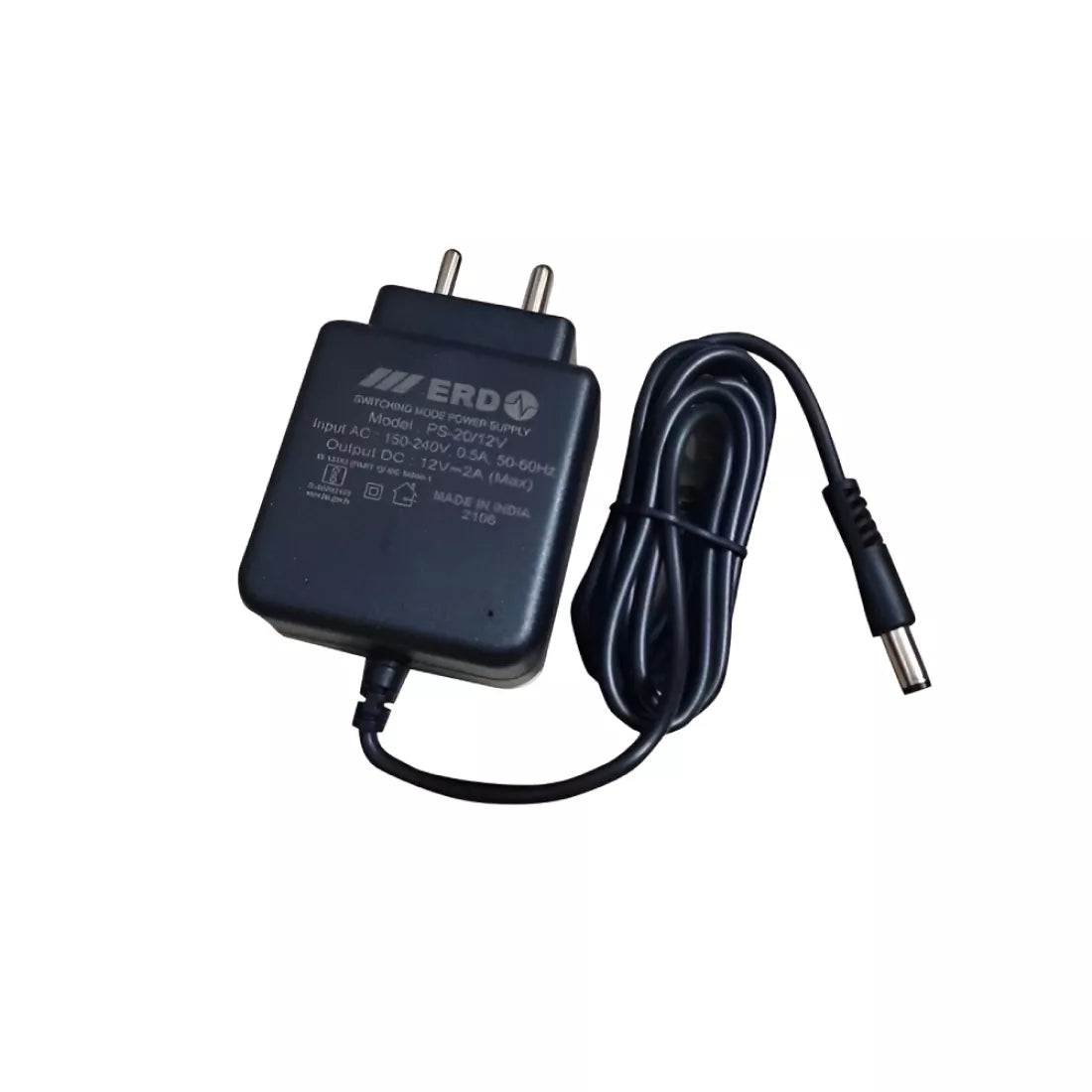

ERD Power Adapter 12v/2a DC Pin PS027
ERD Power Adapter 12V/2A DC Pin (PS027) is a reliable and efficient power adapter suitable for various electronic devices requiring 12V DC input. Delivering stable 2A output, it ensures smooth and safe power performance for routers, CCTV cameras, and other compatible gadgets.
| Specification | Details |
|---|---|
| Input Voltage | 150V to 285V AC, 50/60Hz |
| Output Voltage | 12V DC |
| Output Current | 2 Amp (Max.) |
| Output Wattage | 24 Watt (Max.) |
| BIS Approved | Yes |
| Integrated SMPS Switcher I.C | Yes |
| Surge Protection | Yes |
| Over Temp/Current/Voltage Protection | Yes |
| Low Ripple Voltage | <5% mV P-P |
| Efficiency | High-efficiency, Low Energy Consumption |
| Voltage Tolerance Range | Works under Low Voltage & Protects in High Voltage where linear fails |
| Form Factor | Compact, Plug-in Type |
| Output Plug Size | 5.5 x 2.1mm (Grip Tag DC Pin) |
🔧 Applications
- CCTV Camera / DVR
- WLL / Set-Top Box
- LED Products (LED Strip Light, etc.)
- Other Electronic Equipment
