ERD CCTV Power Supply 12v/16a Multi For 16ch AD33
Tax included.
ERD CCTV Power Supply 12v/16a Multi For 16ch AD33

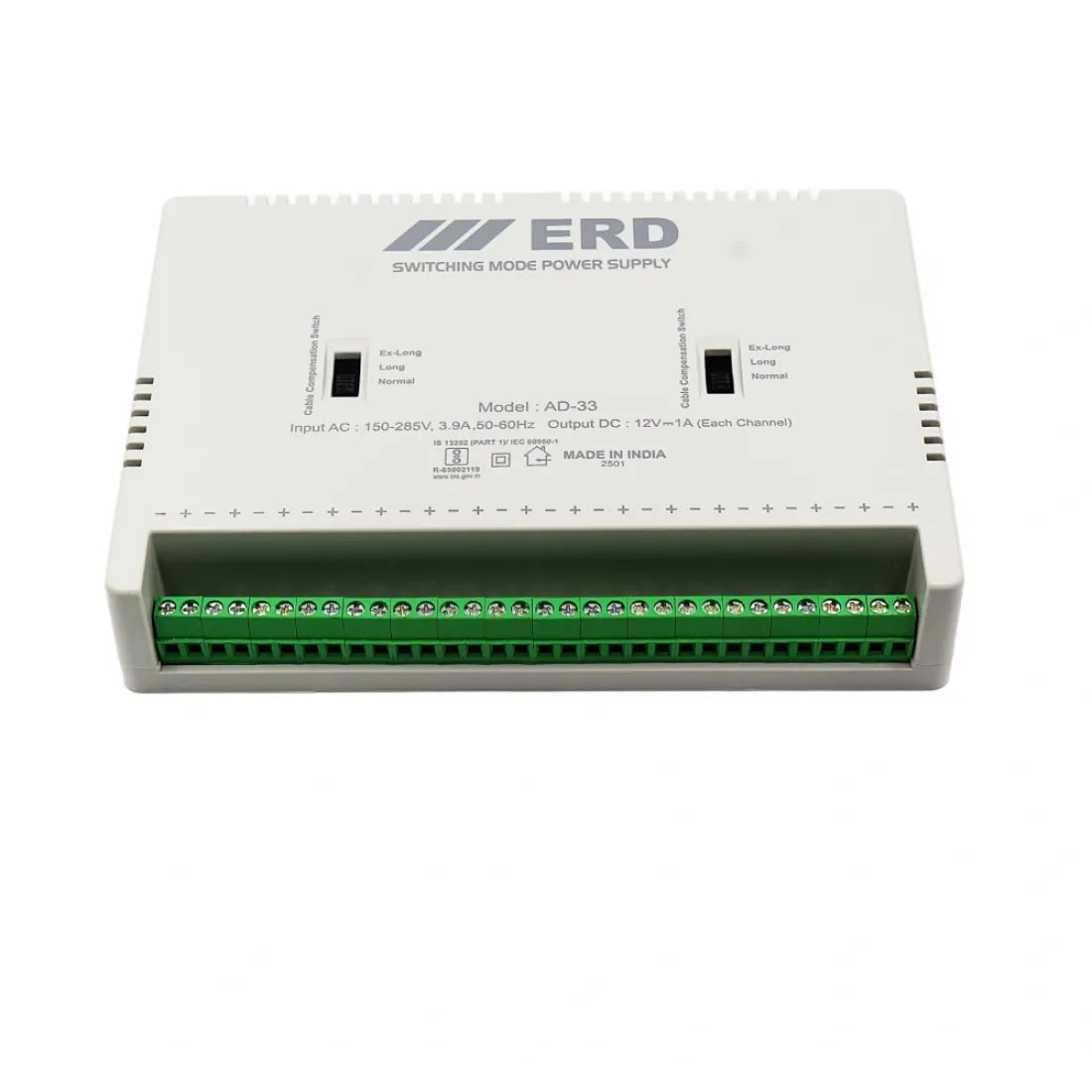

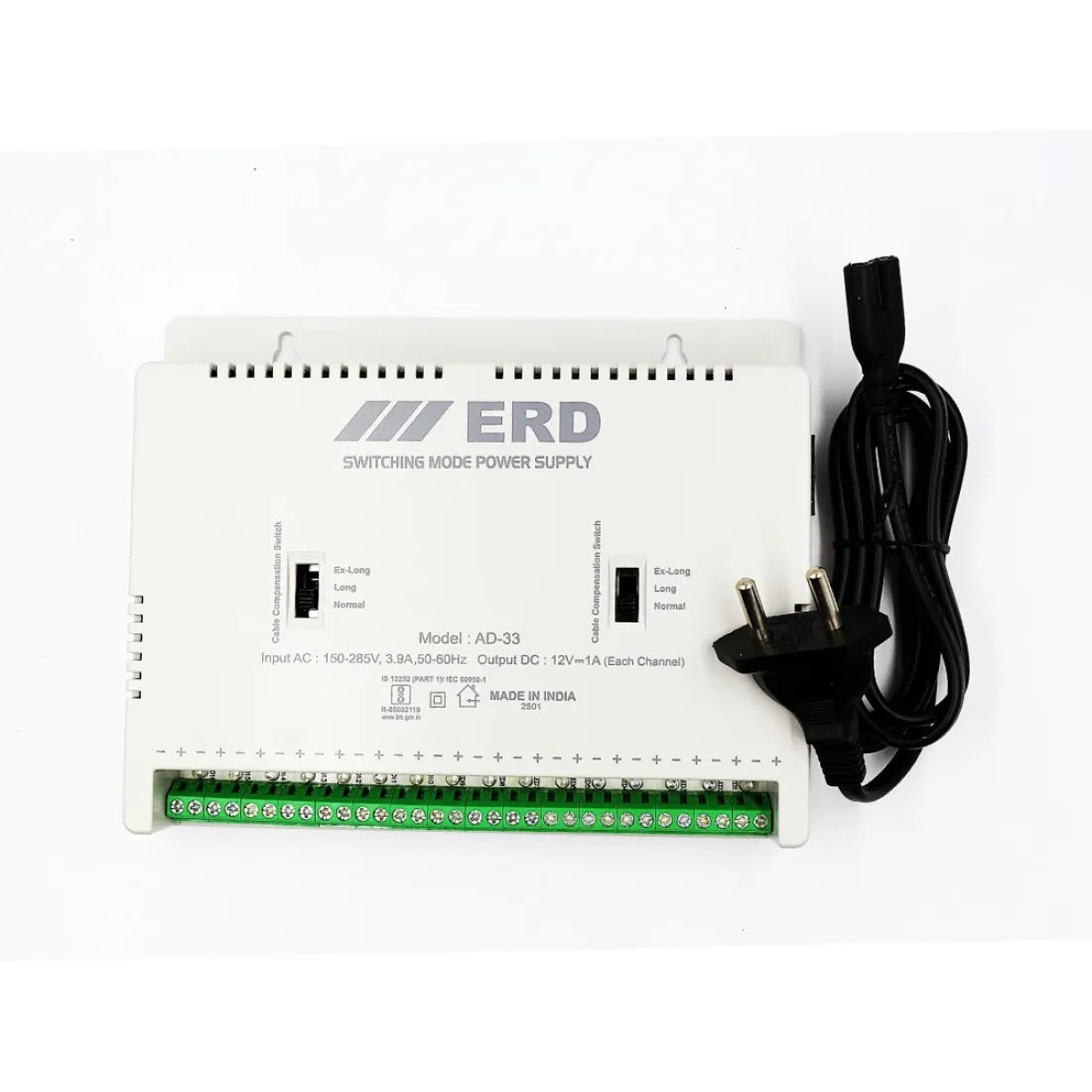

ERD CCTV Power Supply 12v/16a Multi For 16ch AD33 is a robust power supply unit designed to deliver stable 12V/16A output, making it ideal for powering up to 16 CCTV cameras in medium to large surveillance systems. Its reliable performance ensures consistent power distribution and dependable operation.
| Specification | Details |
|---|---|
| Input Voltage | 150V to 240V AC, 50/60Hz |
| Output Voltage | 12V - 1 Amp (Max) per Channel |
| Total Channels | 16 |
| BIS Approved | Yes |
| SMPS IC Design | Highly Integrated Switcher I.C |
| Output Quality | Stabilized, Low Interference |
| Protections | Surge, Over Temp, Over Current, Over Voltage, Over Load |
| Efficiency | High Efficiency, Low Energy Consumption |
| Resettable Fuse | Individual Output with Fuse Protection |
| Voltage Boost | Multiple Cable Compensation Switches |
| Short Circuit Handling | Auto Restart |
| Ripple Voltage | <5% (mV P-P) |
| Cabinet | Grey ABS, Compact, Shock Proof |
| Mounting Type | Wall Mountable / Desktop |
| Power LEDs | Individual Monitor for Each Channel |
| Applications | CCTV Camera, DVR, NVR |
| Warranty | 1 Year (Excludes physical/water damage) |
| Replacement Policy | Replacement against manufacturing defects only |
| Item Code | AD33 |
