Tenda OS3 Outdoor Access Point to Point (P2P) 5KM

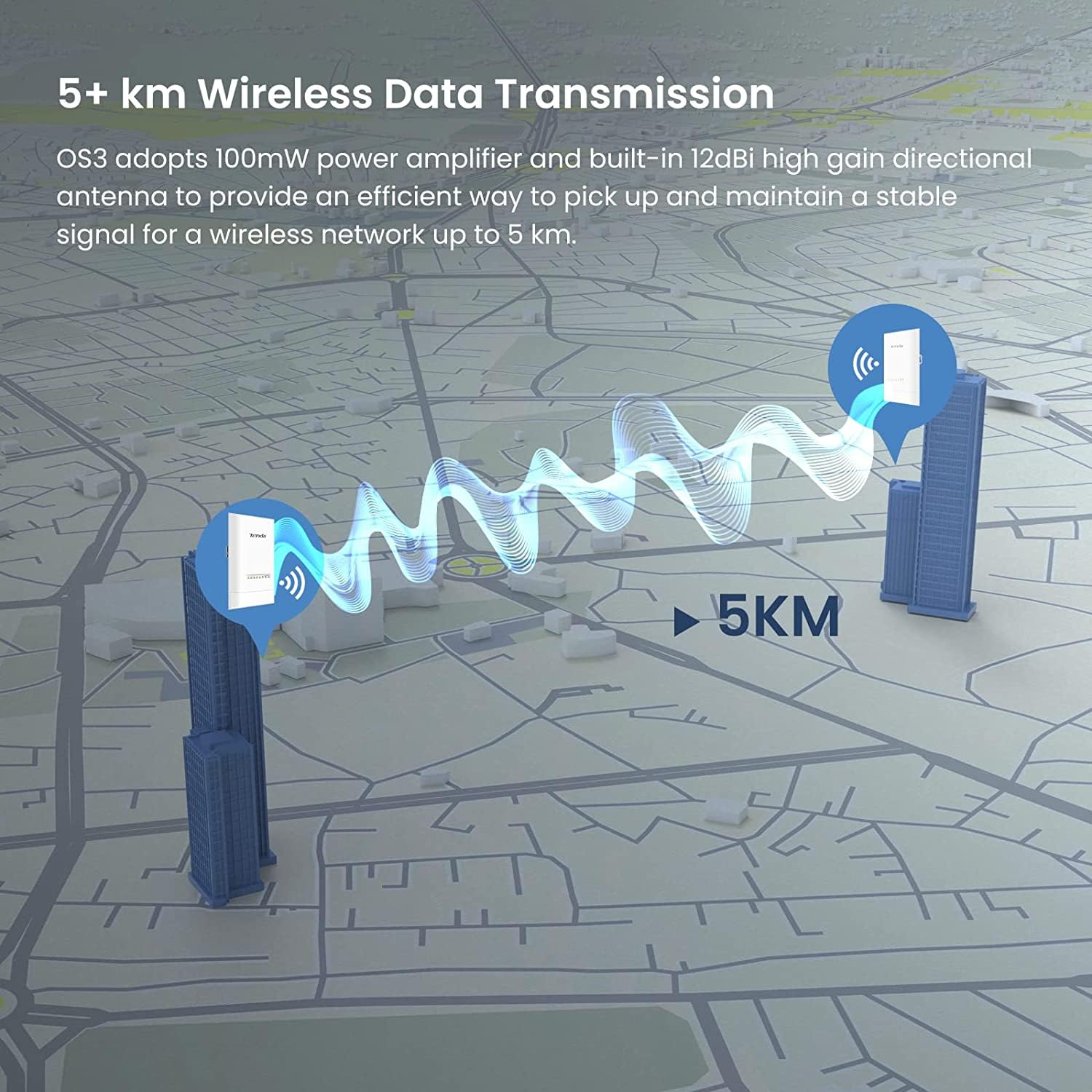

- 5+km transmission range OS3 adopts of internal power amplifier and 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 5km.

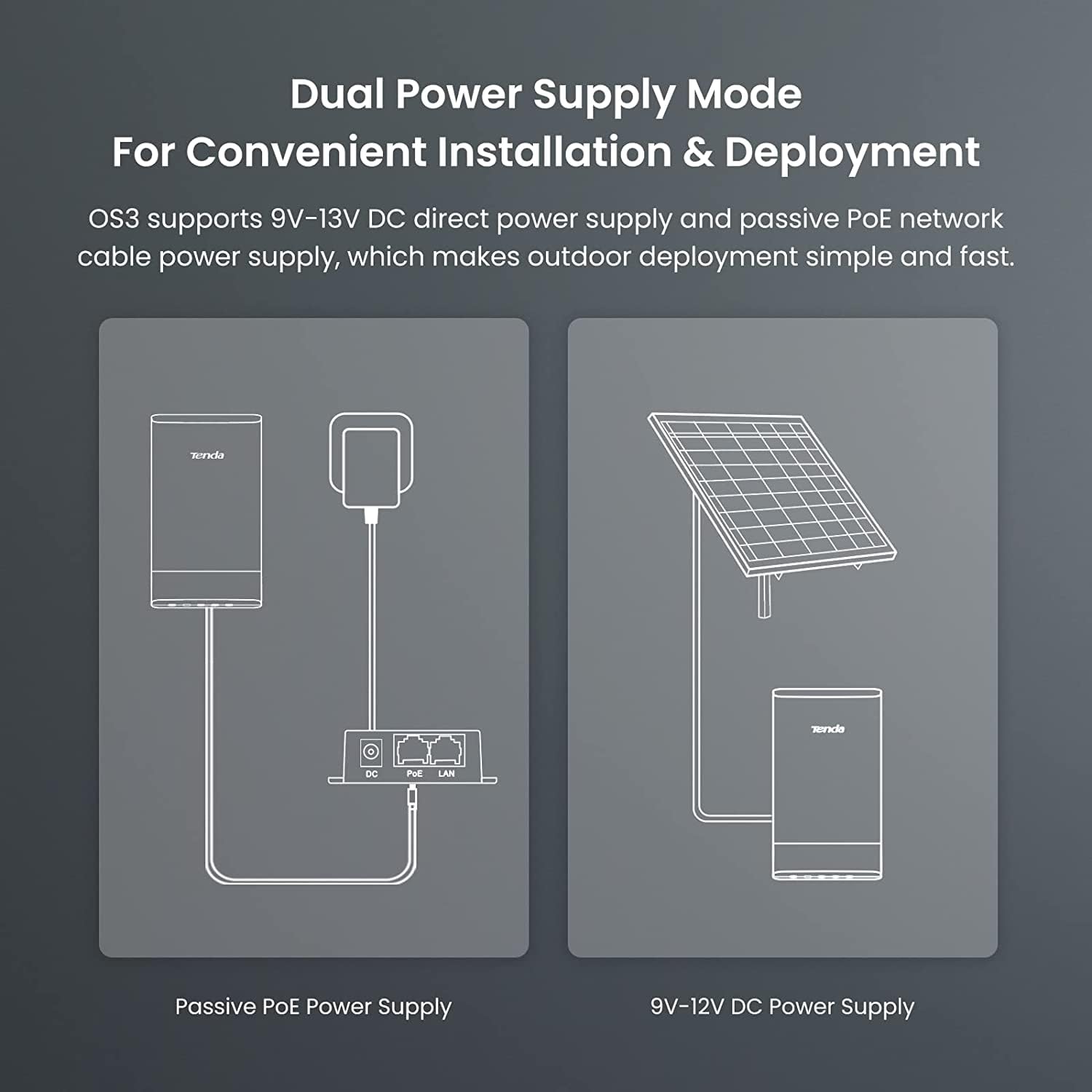

- Flexible power supply method enable it easy to deployment OS3 supports 12V 1A Passive PoE and 12V 1A DC power supply option. It helps the engineer to deploy the device flexibility.

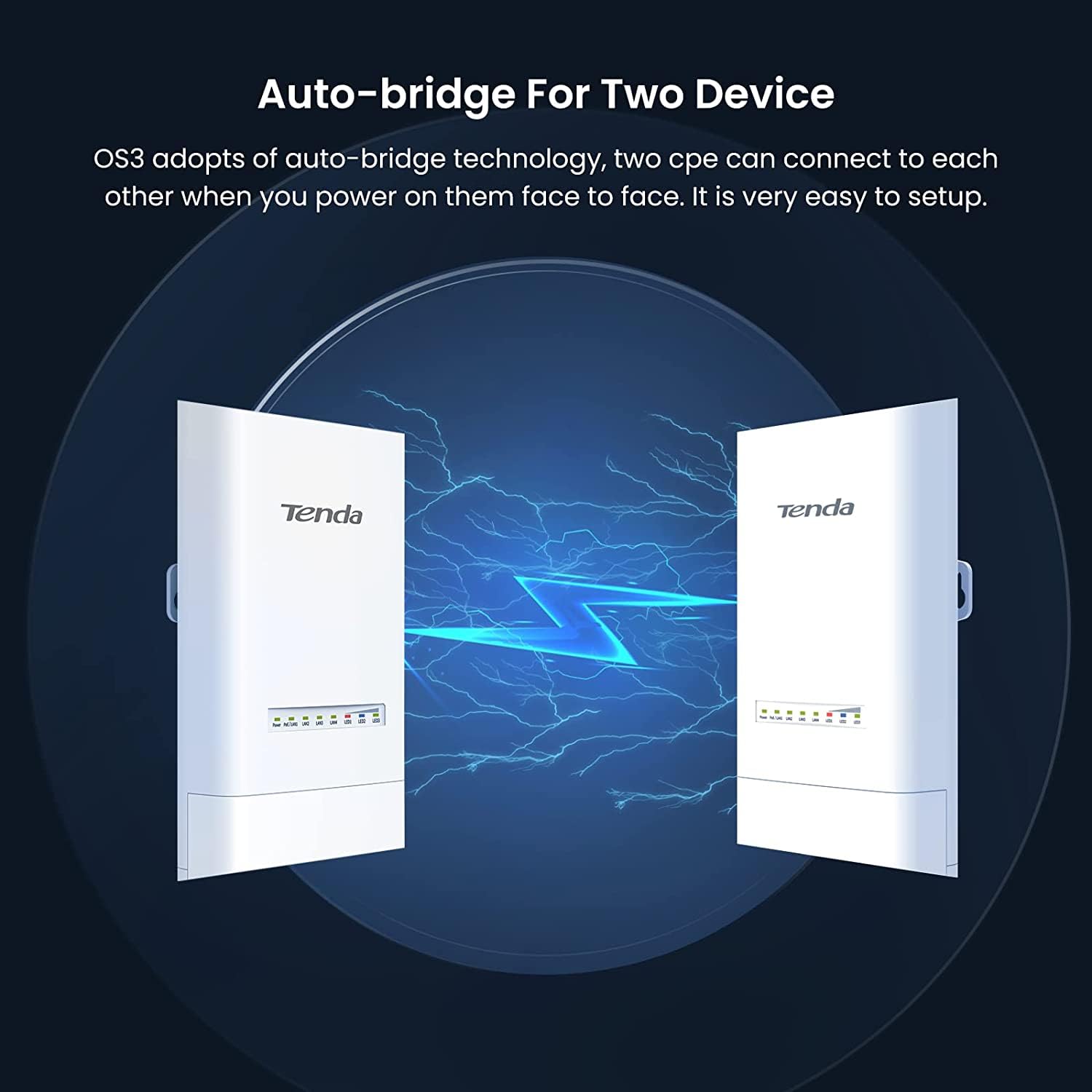

- Auto-bridge technology enable it to easy setup OS3 supports auto-bridge technology, it enables the CPE or basestation in factory default settings to connect to each other automatically after the device is powered on. It is very useful for the person who is not familiar with network knowledge, especially for CCTV surveillance transmission application.
- Easy to Setup and Manage OS3 comes with a centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Assistant.

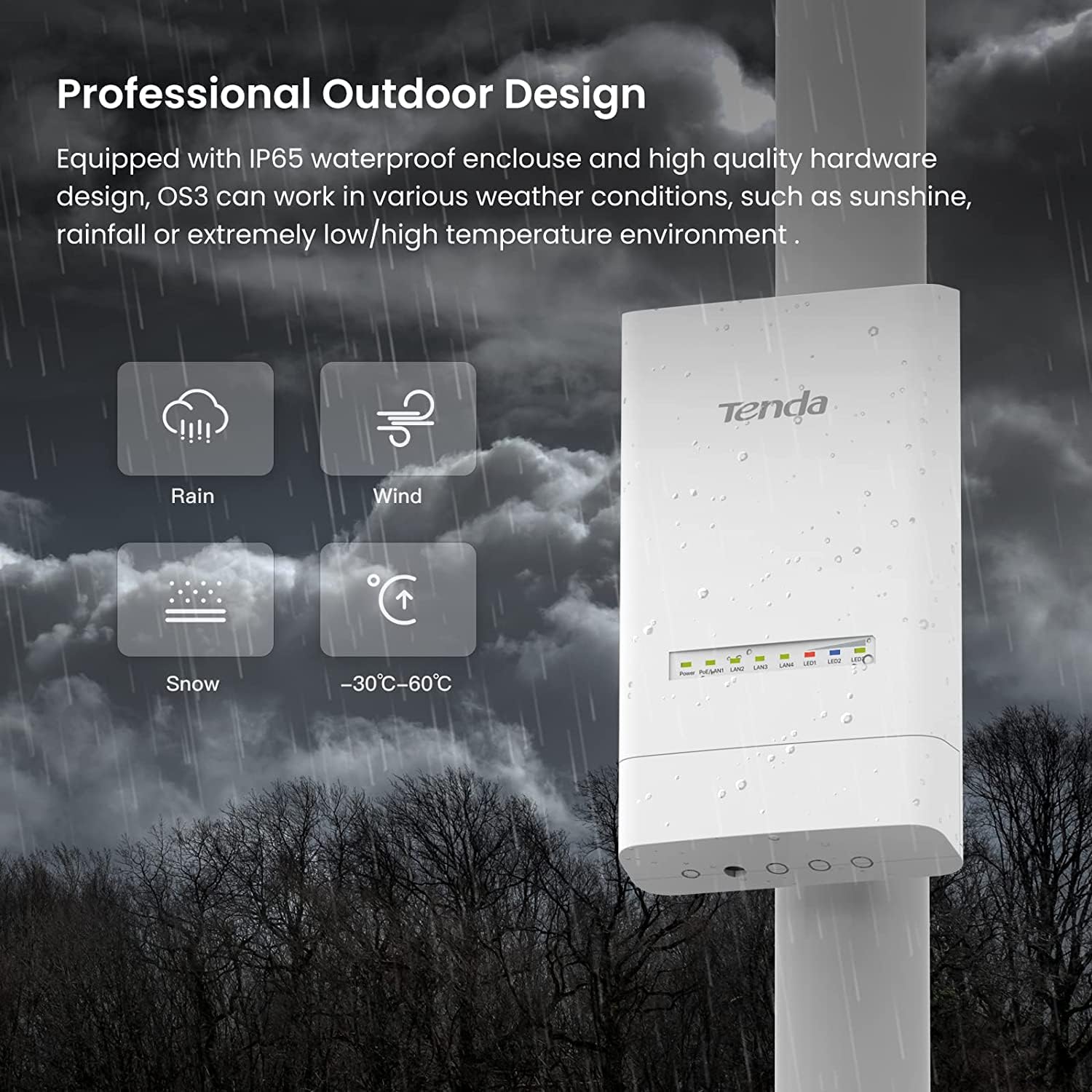

- Professional Outdoor Design Equipped with IP65 waterproof enclose and high quality hardware design, OS3 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment OS3.
Specifications
| Model | OS3 |
| Dimension | 193*109*61mm |

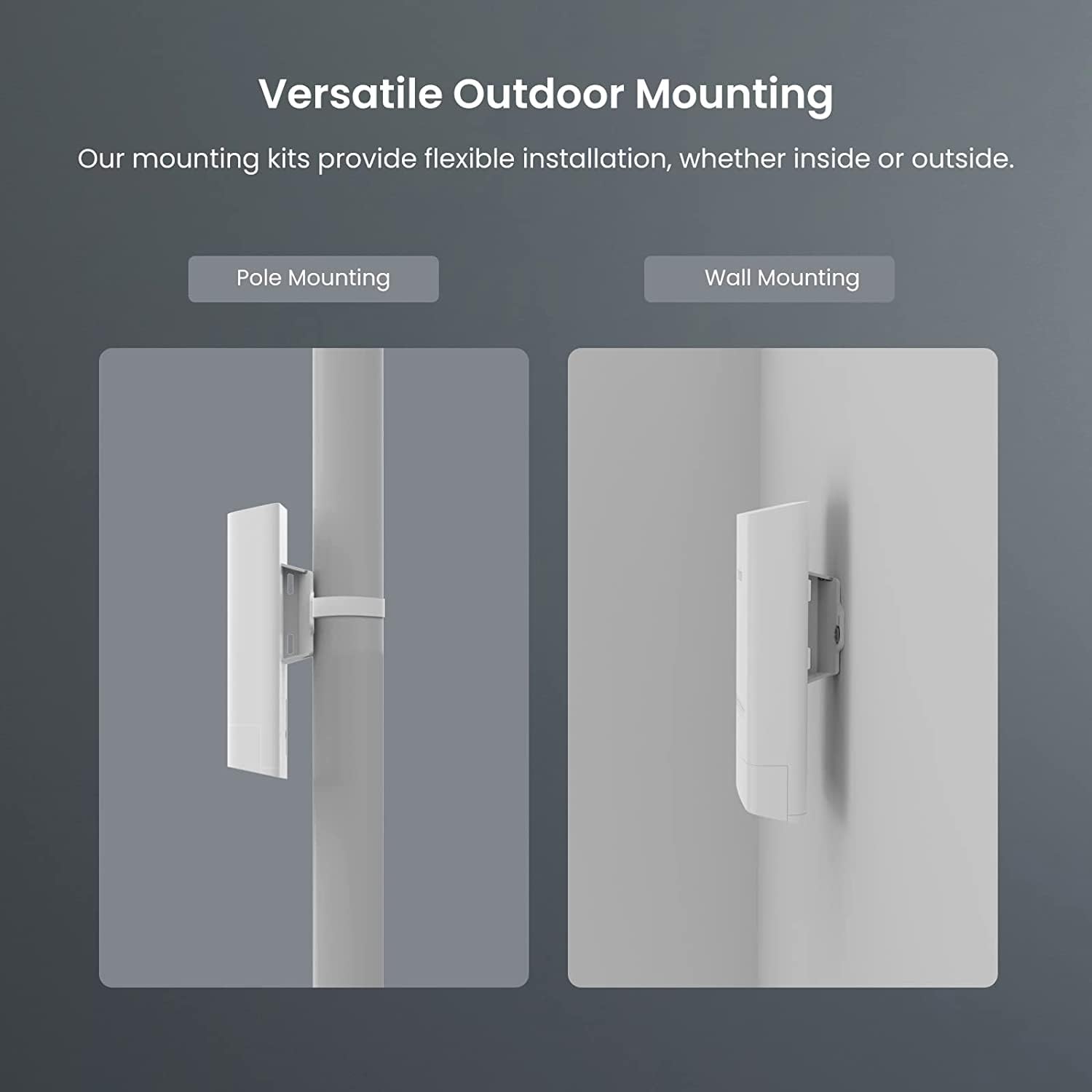

| Deployment | Pole/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n/ac |
| Private TDMA Protocol | TD-MAX |
| Maximum Wireless Rate | 867Mbps |
| Interfaces | 4*10/100 LAN Port |
| Antennas Gain | 12dbi |
| Antenna Beamwidth | Horizontal: 30° Vertical: 30° Elevation: 30° |
| Reset Button | 1 |
| Power Consumption | 4.7W |
| Waterproof Level | IP65 |

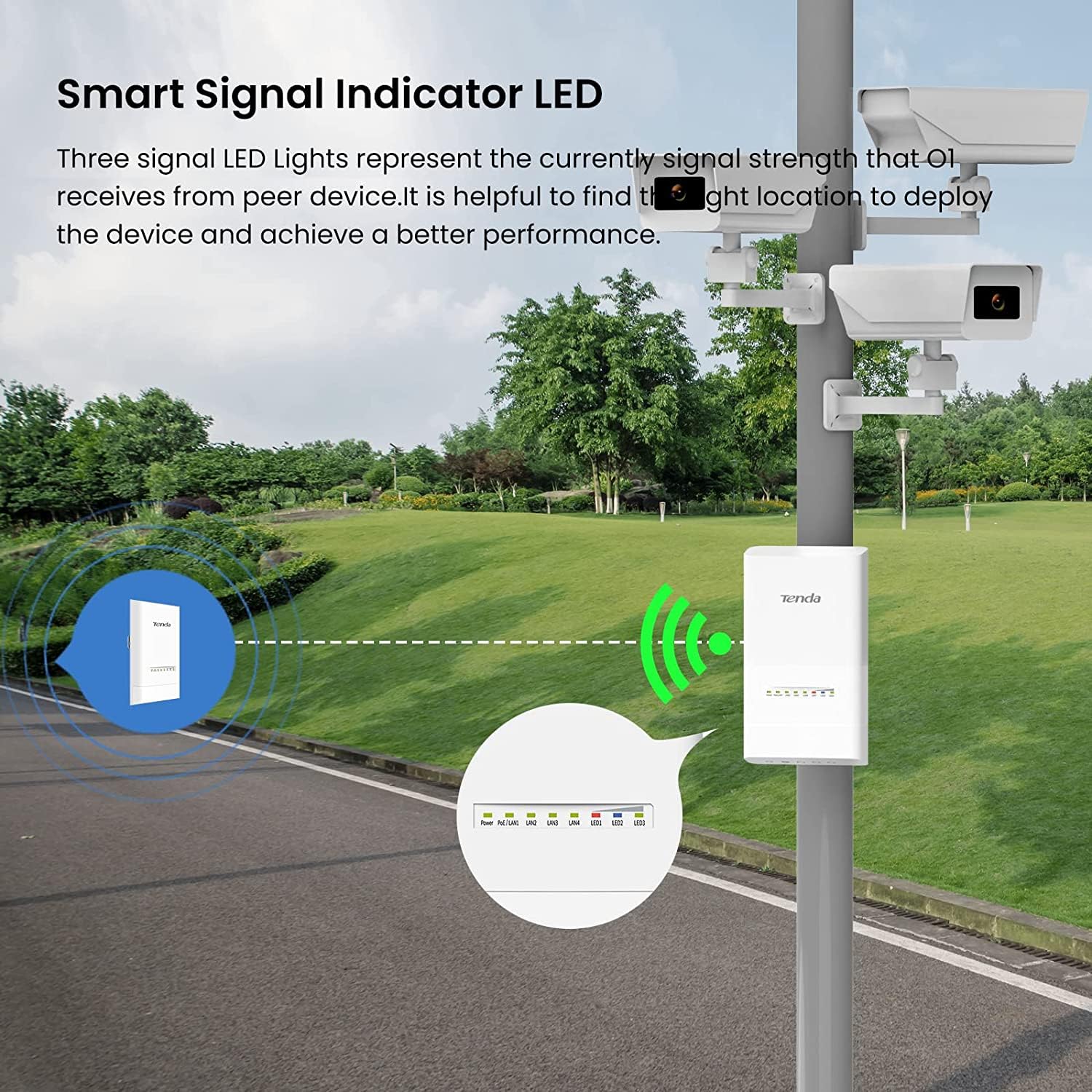

| LED Indicator | Power,PoE/LAN1,LAN2,LAN3,LAN4LED1,LED2,LED3 |
| Power Method | 12V 1A Passive PoE 12V 1A DC |
| Lightning Protection | 6000V |
| Passive PoE | Passive power over ethernet via PoE/LAN (+4,5pins -7,8pins ) up to 60 meters Voltage range: 9-13V DC |
| Reception Sensitivity | 11a 6Mbps -90dBm±1.5dBm 11n MCS0 HT20 -70dBm±1.5dBm 11n MCS7 HT20 -70dBm±1.5dBm 11ac MCS9 HT80 -59dBm±1.5dBm |
| Operating mode | AP/Station/WISP/ Repeater/Router |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Channel Bandwidth | 20/40/80MHz |
| Client Limitation For SSID | Support |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security | WPA-PSK,WPA2-PSK,Mix WPA/WPA2-PSK |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server | Support |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time and Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Logs | Support |
| Managed By Controller | PC Software -- CPE Assistant |

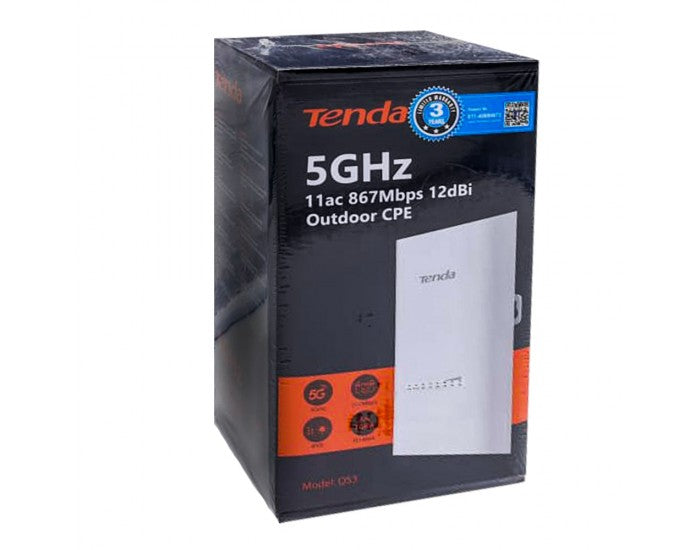

| Package Contents | 1*5GHz 12dBi 11AC 867Mbps Outdoor CPE 1*Power Adapter 1*PoE Injector 1*Quick Installation Guide |
| Operation Temperature | -30℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1/192.168.2.2 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certification | FCC/CE/RoHS |
