Tp Link Poe Injector TL-POE150S Gigabit Ethernet 48V DC TL-POE150S
Tax included.
Tp Link Poe Injector TL-POE150S Gigabit Ethernet 48V DC TL-POE150S

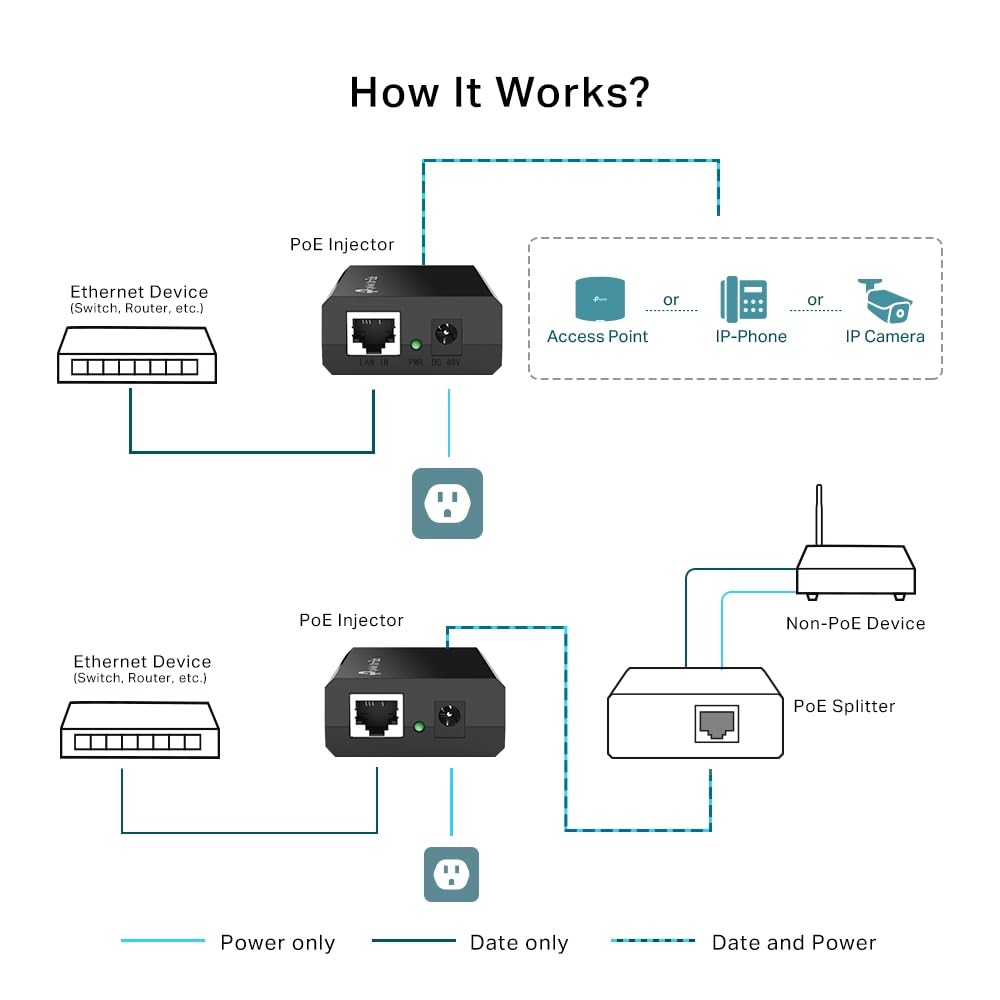

- Auto-detects the required power supply; Plug and Play, no configuration required; Expands network to areas with no power lines or outlets

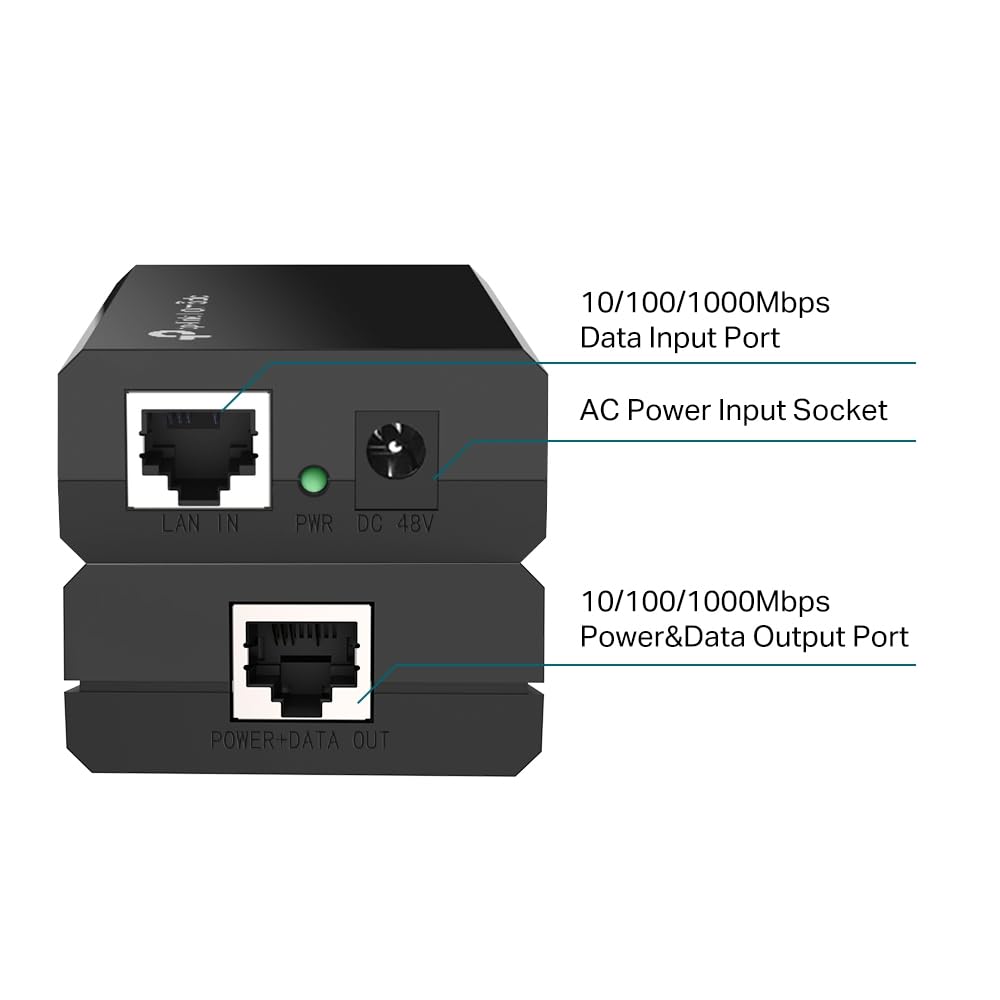

- Interface : 2 10/100/1000Mbps RJ45 Port; AUTO Negotiation/AUTO MDI/MDIX; 1 48VDC POWER INPUT PORT

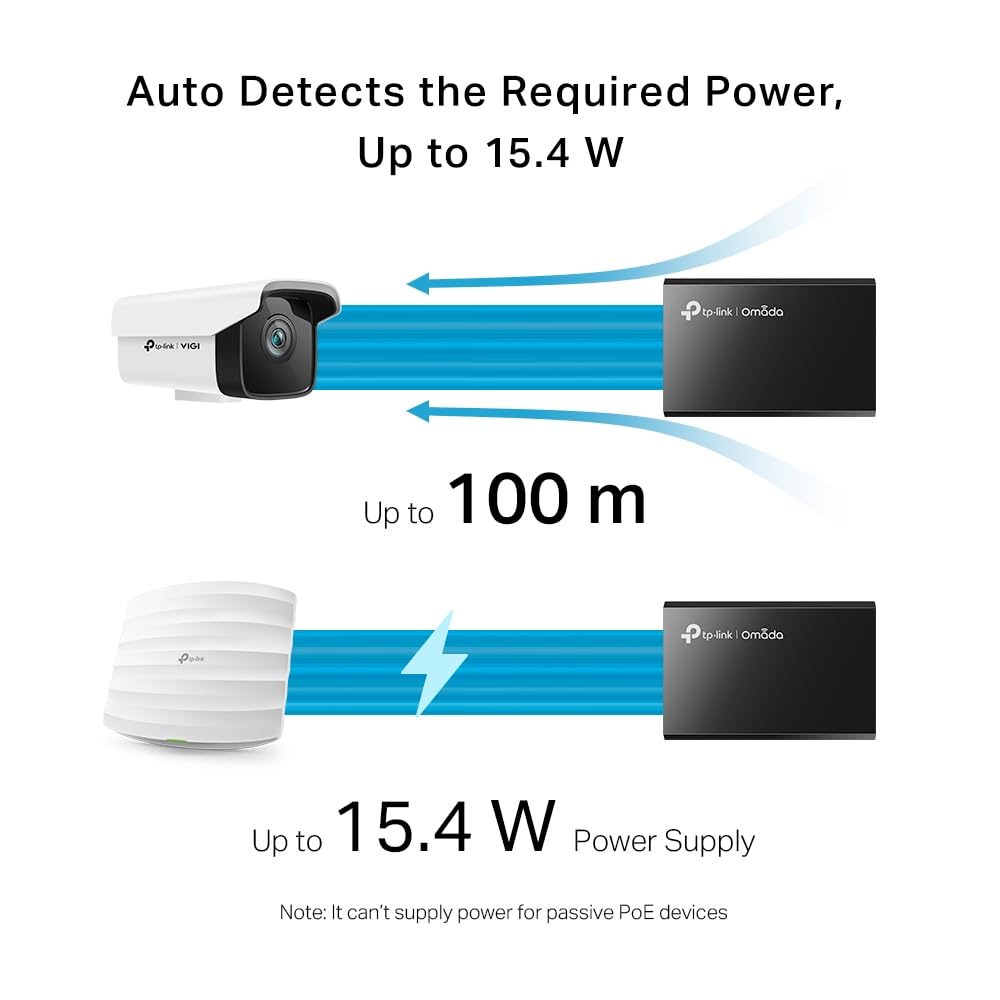

- Basic Function : Compatible With IEEE 802.3af Compliant PDs; Delivers Power Up To 100 Meters; Auto-Determine The Necessary Power Requirements
- Power Supply : 15.4W (Max. 48VDC)
- LED Indicator : PWR
- Network Media : 10BASE-T: UTP category 3, 4, 5 cable (Max 100m); EIA/TIA-568 100Ω STP (Max 100m); 100BASE-TX: UTP category 5, 5e cable (Max 100m); EIA/TIA-568 100Ω STP (Max 100m); 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

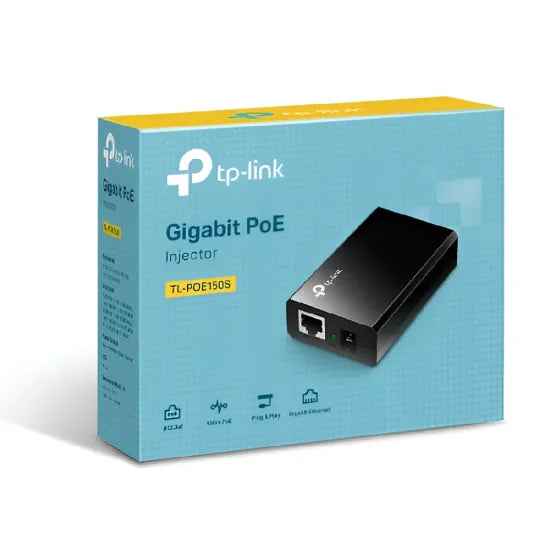

- In the box : Gigabit PoE Injector TL-POE150S, Power Adapter, RJ45 Cable, Installation Guide
- In an unlikely case of product quality related issue, we may ask you to reach out to brand’s customer service support and seek resolution. We will require brand proof of issue to process replacement request.
Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | 2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 48VDC POWER INPUT PORT |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Power Supply | 15.4W (Max. 48VDC) |
| LED Indicator | PWR |
| Dimensions ( W x D x H ) | 3.2*2.1*0.9 in.(80.8*54*24 mm) |
| SOFTWARE FEATURES | |
|---|---|
| Basic Function | Compatible With IEEE 802.3af Compliant PDs Delivers Power Up To 100 Meters Auto-Determine The Necessary Power Requirements |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | Gigabit PoE Injector TL-POE150S Power Adapter RJ45 Cable Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
