ERD Power Supply 12v/1a DC Output 1ch PS10T
Tax included.
ERD Power Supply 12v/1a DC Output 1ch PS10T

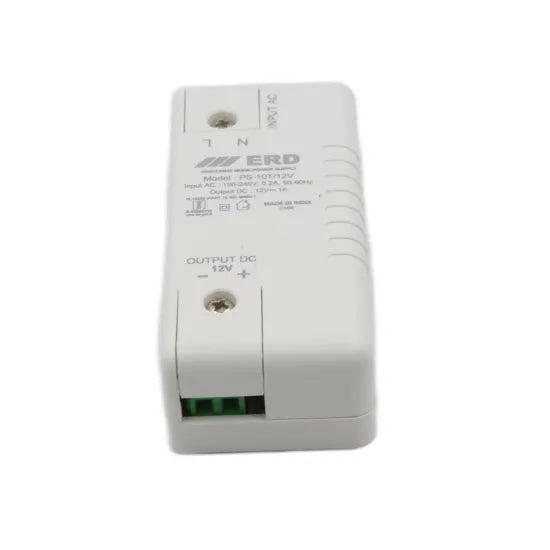

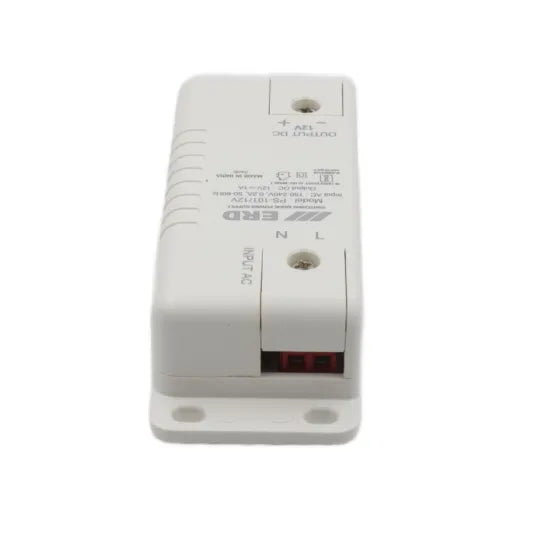

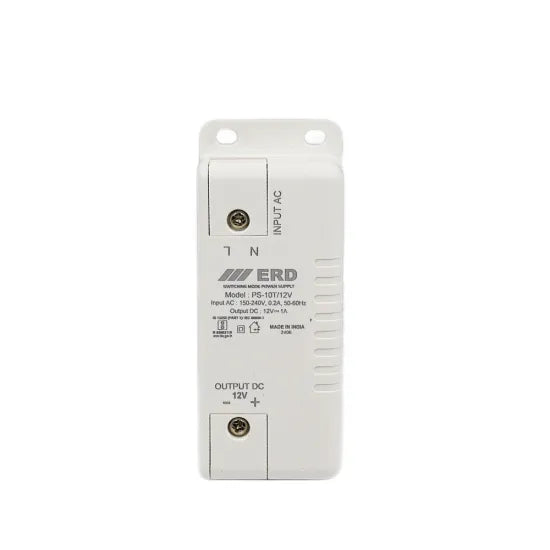

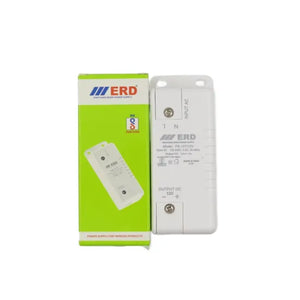

ERD Power Supply 12v/1a DC Output 1ch PS10T is a reliable power supply unit designed to deliver a stable 12V/1A DC output for single-channel devices such as CCTV cameras and networking equipment requiring consistent power. Its dependable performance ensures smooth operation and enhanced device longevity.
| Specification | Details |
|---|---|
| Input Voltage | 150V to 240V AC, 50/60Hz |
| Output Voltage | 12V DC |
| Output Current | 1 Amp (Max.) |
| Output Wattage | 12 Watt (Max.) |
⚙️ Features
| BIS Approved | Yes |
| Highly Integrated SMPS Switcher I.C Design | Yes |
| Surge Protection, Over Temperature Protection | Yes |
| Over Current, Over Voltage & Over Load Protection | Yes |
| High-efficiency, low energy Consumption | Yes |
| Low Ripple Voltage (mV P-P) | <5% |
| Works under low voltages and protects high voltage where linear fails | Yes |
| Small size Wall Mountable / Desktop Type | Yes |
📌 Applications
| CCTV Camera | Yes |
| LED Products (LED Strip light, etc.) | Yes |
| Other Electronic Equipments | Yes |
🛡️ Warranty
| Warranty Period | 1 year |
| Exclusions | Physical damage, scratches, water or liquid damage not covered |
| Replacement Policy | Replacement against manufacturing defects only |
