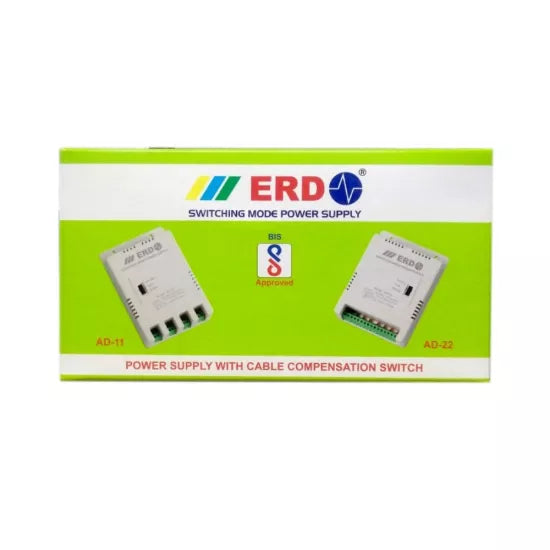

ERD CCTV Power Supply 12v/4a Multi For 4ch (AD11)
Tax included.
ERD CCTV Power Supply 12v/4a Multi For 4ch (AD11)
| Feature | Specification |
|---|---|
| Input Voltage | 150V to 240V AC, 50/60Hz |
| Output Voltage | 12V-1Amp (Max) Each Channel |
| BIS Approved | Yes |
| Design | Highly Integrated SMPS Switcher I.C Design |
| Output | Stabilized Output, Low Interference |
| Protections | Surge Protection, Over Temperature Protection, Over Current, Over Voltage & Over Load Protection |
| Efficiency | High-efficiency, low energy Consumption |
| Individual Output | With Resettable Fuse |
| Voltage Boosting | Cable Compensation Switch for Voltage Boosting |
| Short Circuit Protection | Auto Restart |
| Ripple Voltage (mV P-P) | <5% |
| Cabinet | Attractive Grey Color ABS Cabinet |
| Size | Compact size, light weight Shock Proof |
| Mounting | Wall Mountable/ Desktop Type |
| Application 1 | 4 Channel Security Camera Power Supply |
| Application 2 | Power LED Monitor for individual camera channel |
| Application 3 | Individual Camera Drive |
| Warranty | 1 Year warranty (Manufacturing defects only) |
| Warranty Conditions | Physical damage/scratches/water or Liquid damage not covered |
| Item Code | AD11 |
