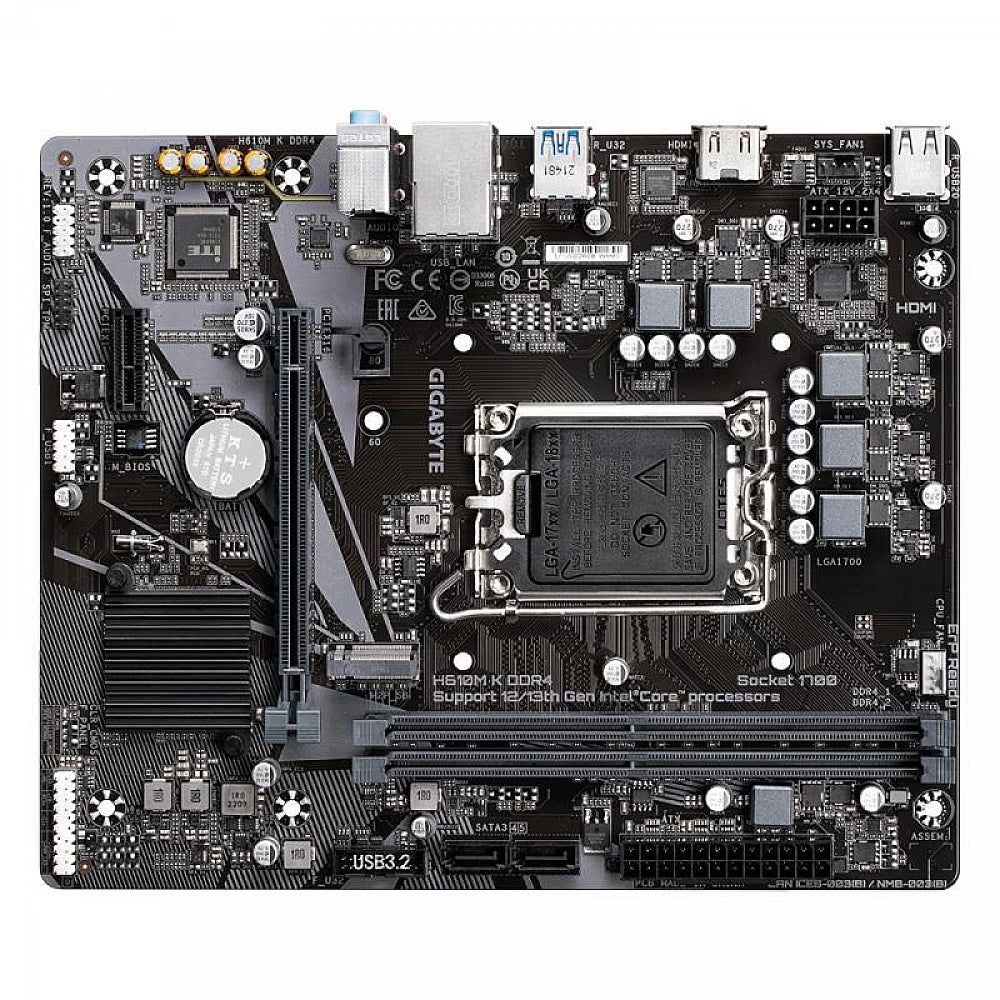

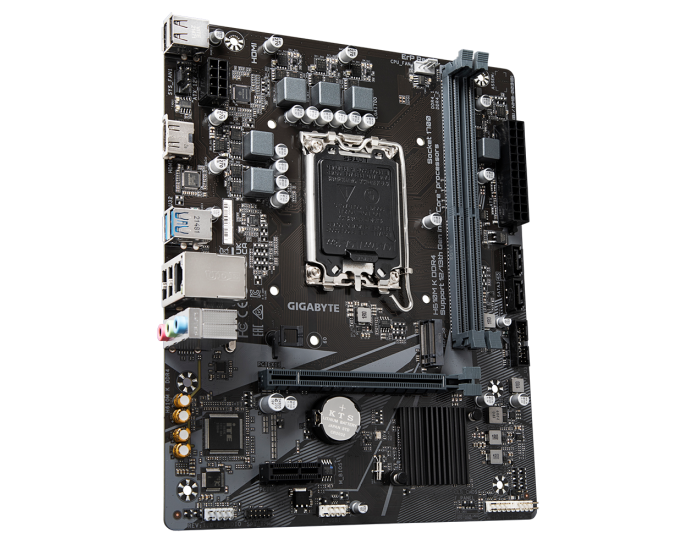

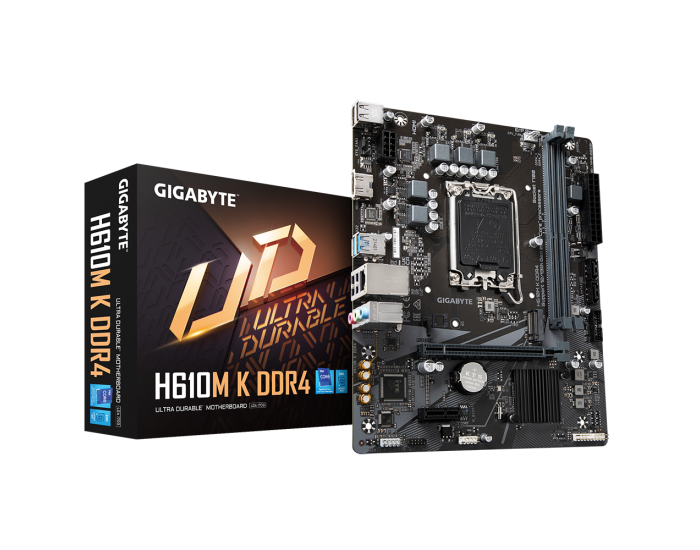

Gigabyte H610M K DDR4 Motherboard for Intel 13th/ 12th Gen Processors - LGA1700 Socket
Tax included.
Gigabyte H610M K DDR4 Motherboard for Intel 13th/ 12th Gen Processors - LGA1700 Socket
Features:
- Supports 13th/12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Specifications
| Form Factor | MICRO ATX |
| Graphic Compatibility | PCIE 4.0 |
| Model No | H610M K DDR4 |
| Motherboard Generation | 12th | 13th | 14th |
| Motherboard Series | H610 |
| Supporting CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU |
| Motherboard Chipset | Intel |
| Memory | DDR4 |
| Port / Slot | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper |
| CPU Socket | LGA 1700 |
| Warranty | 3 Years from Gigabyte Service Center |
| For More Information | https://www.gigabyte.com/Motherboard/H610M-K-DDR4-rev-10#kf |
