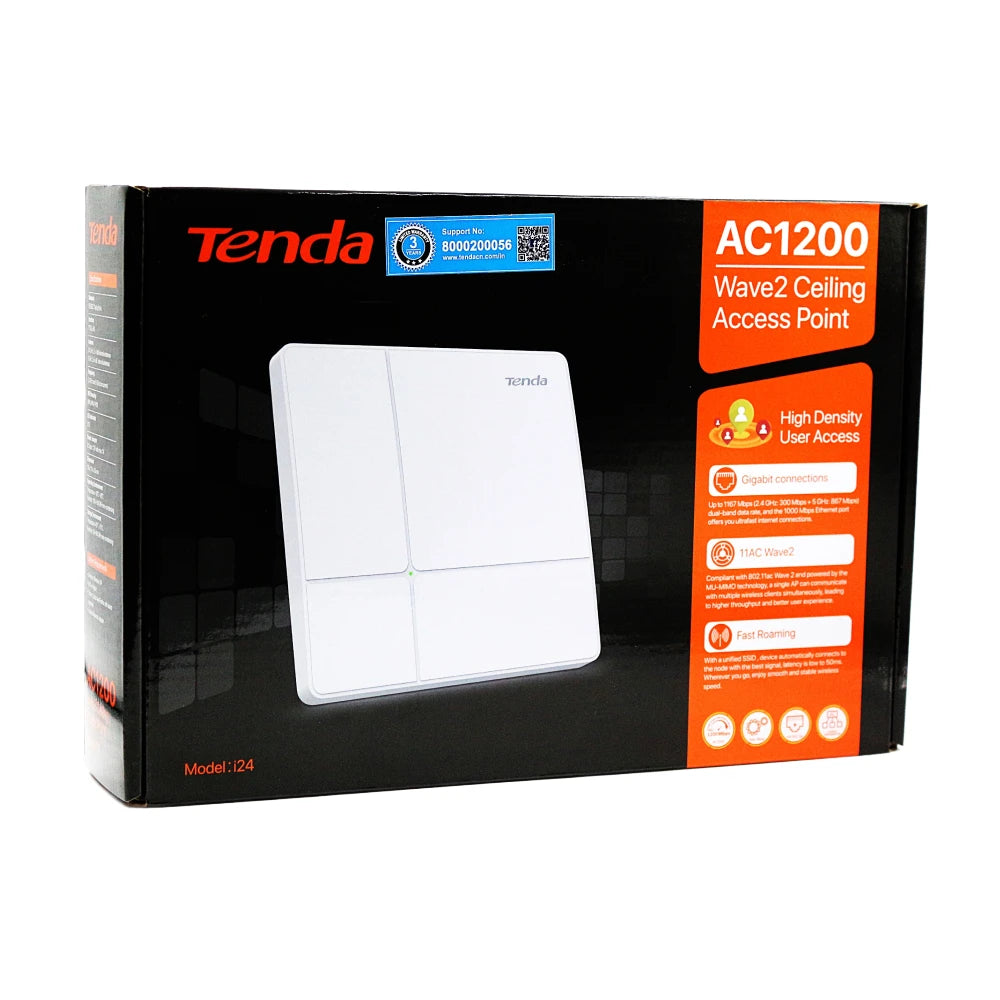

Tenda I24 Ceiling Mount Dual Band Access Point
Tax included.
Tenda I24 Ceiling Mount Dual Band Access Point
i24 is a gigabit dual-band ceiling access point that compliant with IEEE 802.11ac Wave 2, and offers a concurrent data rate up to 1167 Mbps. Powered by MU-MIMO technology, letting you enjoy better experience. And the built-in omni-directional antennas broaden the wireless coverage of a single AP. In addition, you are allowed to adjust its transmit power as required using the
web UI, and use an IEEE 802.3at-compliant PoE sourcing equipment to power on it, achieving long-distance power supply without tampering your existing grid network. You are also allowed to use Tenda access controllers (AC) to configure and manage multiple i24 in a centralized manner.
Specifications
| Model | i24 |
| Category | Ceiling |
| Dimension | 178 × 178 × 38mm |
| Interface | One 10/100/1000 Mbps Ethernet Port (PoE) |
| Button | 1 x RESET |
| LED Indicator | 1 x SYS |
| Maximum Power Consumption | 13.5W |
| Power Supply | 802.3af/at & DC: 12V 1A |
| Max. Number of Clients | 256 |
| Recommended Clients | 38 |
| Antenna | 2.4GHz: 2 x 4dBi 5GHz: 2 x 4dBi |
| 2.4GHz maximum power | 23+/-1.5dBm |
| 5GHz maximum power | 23+/-1.5dBm |
| Reception Sensitivity | 802.11b -93 dBm 2.4 GHz 802.11n (MCS7) -73dBm 5 GHz 802.11a -93 dBm 5 GHz 802.11n (MCS7) -74 dBm |
| Frequency Range | 2.4GHz&5GHz |
| Standard&Protocol | 802.11a/b/g/n/ac(wave2) |
| Maximum wireless speed | 2.4GHz: 300Mbps 5GHz: 867Mbps |
| Bandwidth | 20MHz/40MHz/80MHz |
| Operating Mode | AP/Client AP |
| Max. No. of SSID | 2.4GHz: 8 5GHz: 4 |
| Hide SSID | Support |
| OFDMA | Support |
| Beamforming | Support |
| Fast roaming（802.11k/v/r） | Support |
| WEP | Support |
| WPA-PSK | Support |
| WPA2-PSK | Support |
| WPA | Support |
| WPA2 | Support |
| WPA3-ASE | Support |
| Access control | Support |
| Adjustable power transmit | Support |
| Automatic channel | Support |
| AP isolation | Support |
| Connected clients control | Support |
| RSSI Threshold | Support |
| Weak signal terminal elimination | Support |
| Prioritize 5 GHz | Support |
| VLAN tagging for SSID | Support |
| LED control | Support |
| MU-MIMO | Support |
| Diagnostics tool | Support |
| Reboot at specified interval | Support |
| Schedule Reboot | Support |
| Device management | M3 or Tenda Router with AP Controller feature |
| System Logs | Support |
| Firmware upgrade | Support |
| Reboot | Support |
| Reset | Support |
| Backup configuration | Support |
| Restore configuration | Support |
| Default login IP | 192.168.0.254 |
| Default Login Username | admin |
| Default Login Password | admin |
| Operation Temperature | -10℃ ~ 40℃ |
| Operating humidity | 10%~90% non-condensing |
| Storage temperature | -30℃ ~ 70℃ |
| Storage humidity | 10%~90% non-condensing |
| For More Information | https://www.tendacn.com/en/product/i24.html |
| Warranty | 3 Years from Tenda Service Center |
