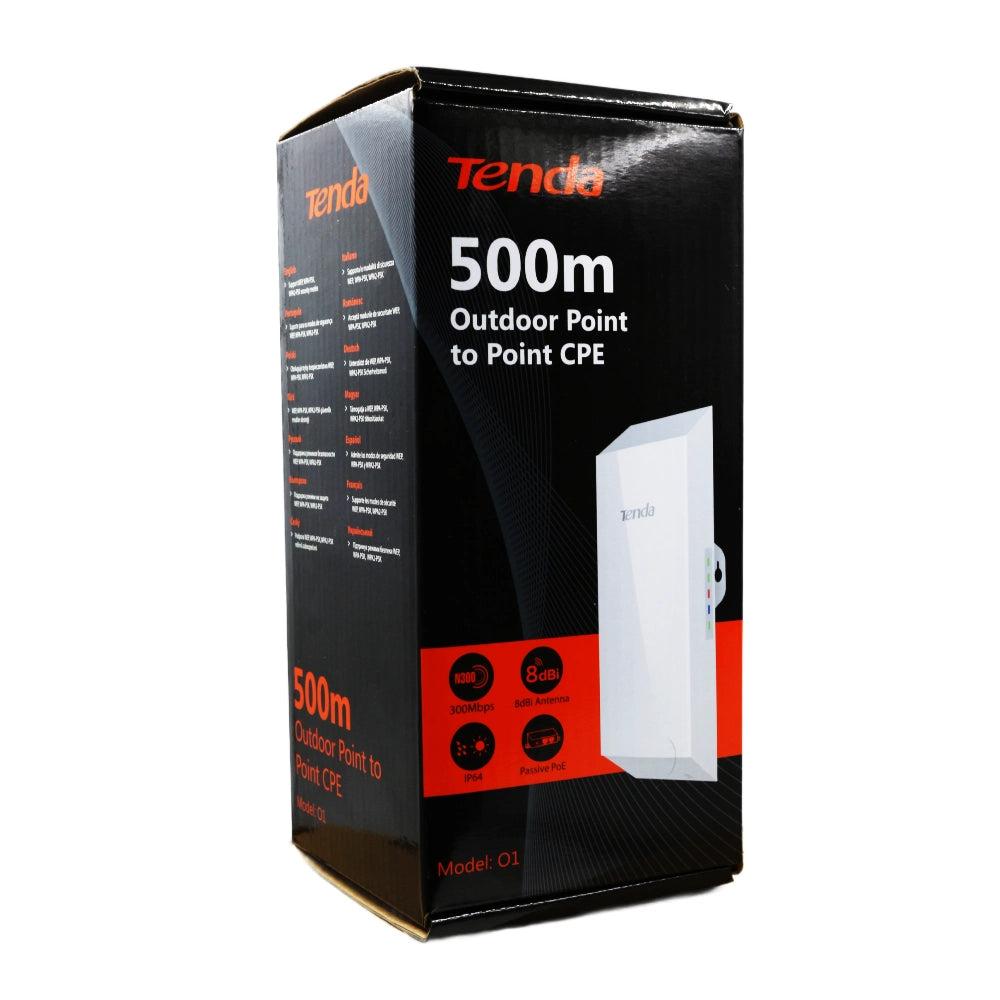

Tenda O1 Outdoor Access Point to Point (P2P) 500M
Tax included.
Tenda O1 Outdoor Access Point to Point (P2P) 500M
O1 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 8dBi directional antenna to provide an efficient way to pick up
and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.
Specifications
| Model | O1 |
| Dimension | 193.5*80*67.5mm |
| Deployment | Pole Mount/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
| Frequency Range | 2.4GHz |
| Compliant Standards | IEEE 802.11b/g/n |
| Maximum Wireless Rate | 300Mbps |
| Interfaces | 1*10/100Mbps Ethernet Port |
| Antenna Polarization | Dual Polarization |
| Antennas Gain | 8dbi |
| Antenna Beamwidth | Horizontal: 60° Vertical: 60° |
| GND | / |
| Reset Button | 1*Reset Button |
| Power Consumption | 2.6W |
| Waterproof Level | IP65 |
| LED Indicator | PoE/LAN,WiFi, LED1,LED2,LED3 |
| Power Method | 9V0.6A Passive PoE 9V0.6A DC |
| Lightning Protection | / |
| Passive PoE | Passive power over ethenet via PoE/LAN (+4,5pins -7,8pins) Voltage range: 9-13.8V DC |
| Reception Sensitivity | 11b 1Mbps -92dBm±1.5dBm 11n MCS0: -92±1.5dBm 11n MCS7: -72±1.5dBm |
| TDMA | / |
| Operating mode | AP/Station/WISP |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Channel Bandwidth | 20/40MHz |
| Channel Shift | / |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server | Support |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time and Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Logs | Support |
| Managed By Controller | PC Software CPE Assistant |
| Package Contents | 1*2.4GHz 11n 8dBi 300Mbps outdoor CPE O1 1*Power Adapter 1*PoE Injector 1*Quick Installation Guide |
| Operation Temperature | -30℃ ~55 ℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certification | FCC/CE/RoHS |
| Warranty | 3 Years from Tenda Service Center |
| For More Information | https://www.tendacn.com/product/O1.html |
