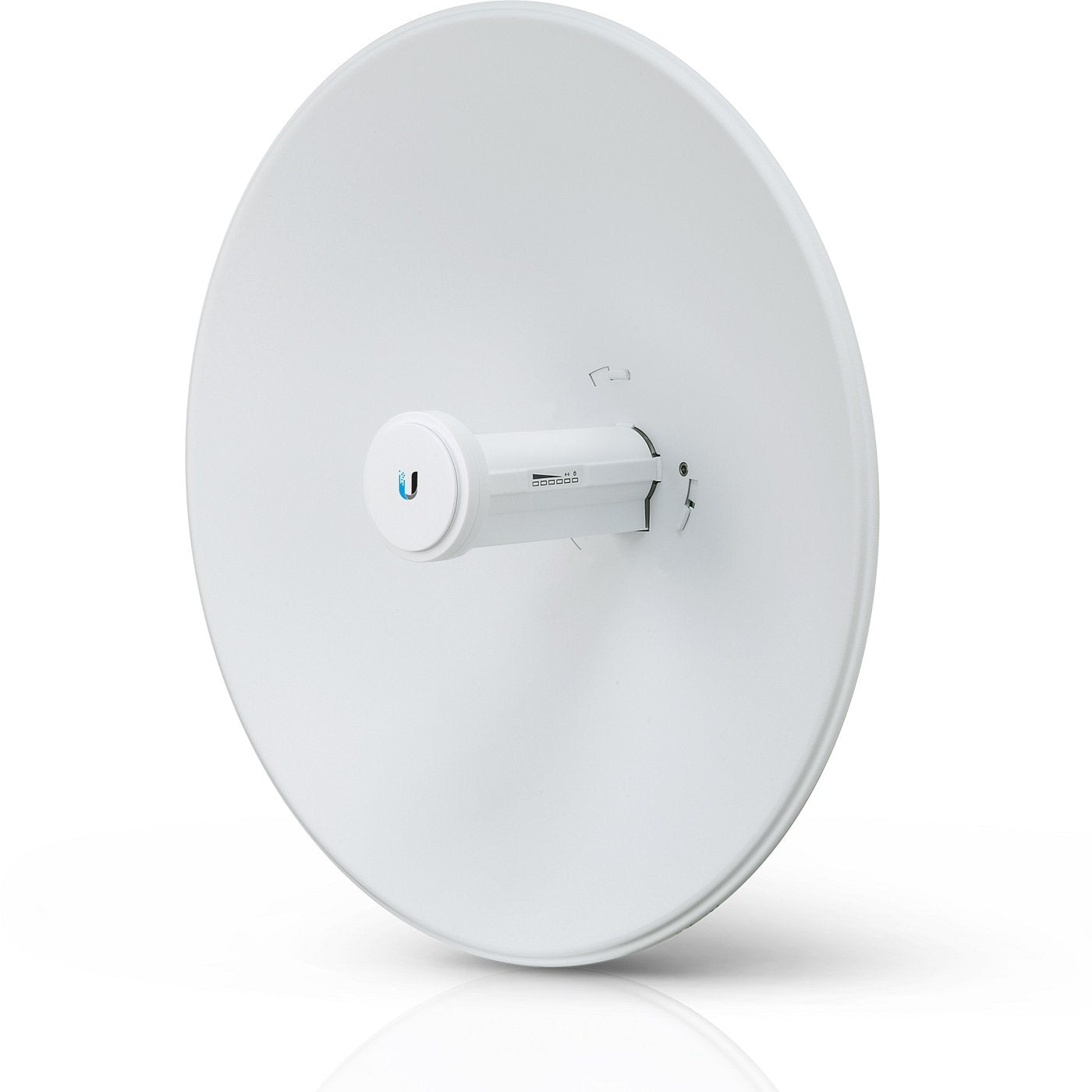

Ubiquiti PowerBeam ac Gen2 High-Performance airMAX ac Bridge PBE-5AC-GEN2
Tax included.
Ubiquiti PowerBeam ac Gen2 High-Performance airMAX ac Bridge PBE-5AC-GEN2
- Improved radio design

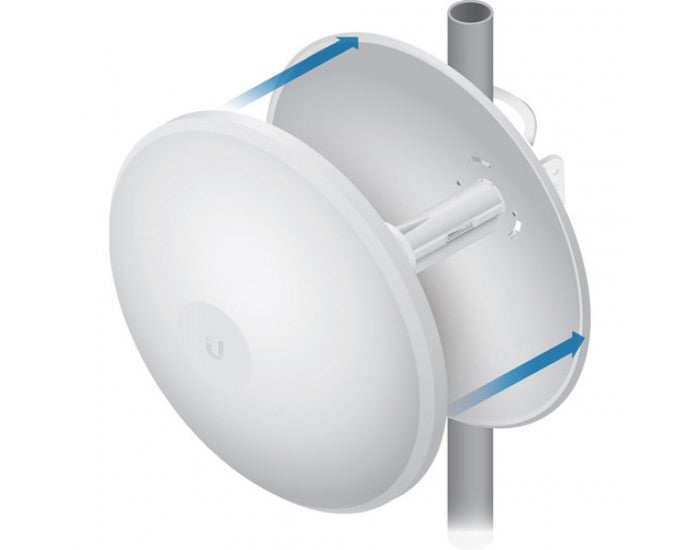

- Improved mounting
- Improved surge protection
- Management WiFi Radio/UNMANS mobile app
- AirOS 8
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 230mm (16.54 x 16.54 x 9.06") |
| Weight | 2.22 kg (4.89 lb) |
| Enclosure Materials | Antenna Feed: Outdoor UV-Stabilized Plastic Dish Reflector: Powder-Coated SPCC |
| Wind Loading | 380 N at 200 km/h (85.4 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Mounting | Pole-Mount (Kit Included) |
| Hardware | |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Gain | 25 dBi |
| Processor | MIPS 74Kc |
| Max. Power Consumption | 8.5W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20 to 26VDC |
| Operating Temperature | -40 to 70 C (-40 to 158 F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150-5250 5250-5350 5240-5725 5725-5850 |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 |
| US/CA | 2412 - 2462 |
